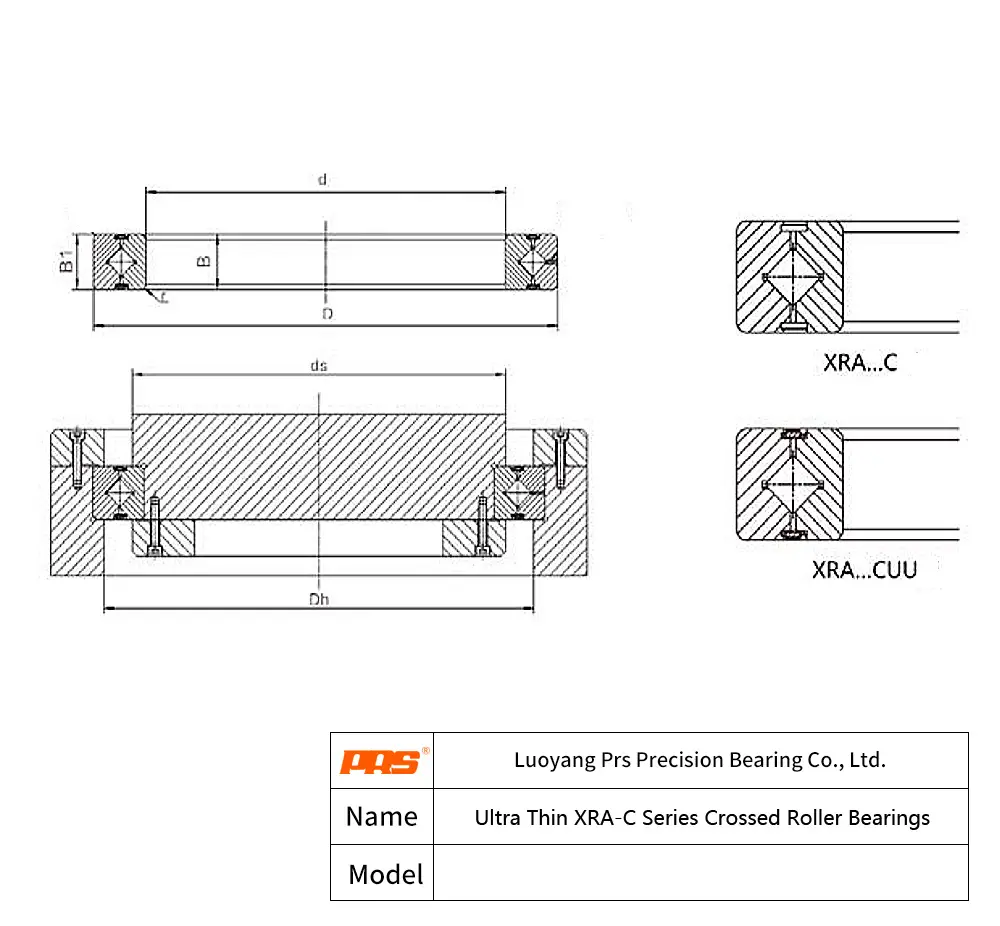

Manufactured by PRS Bearings, the XRA12008C is a precision Ultra Thin XRA-C Crossed Roller Bearings. You may consider it as an interchangeable alternative and replacement for THK RA12008C. Key dimensional parameters include a 120 mm bore diameter, a 136 mm outer diameter, and a 8 mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
XRA12008C - Ultra Thin XRA-C Crossed Roller Bearings
Technical Specifications
| Direct Interchange | THK RA12008C |
|---|---|
| Overview | |
| Basic Model | XRA12008C |
| Weight | 0.17 kg |
| Dimensions | |
| Bore Dia (d, mm) | 120 mm |
| Outer Dia (D, mm) | 136 mm |
| Width (B, mm) | 8 mm |
| Roller Pitch Dia (Dpw) | 127 mm |
| Load Ratings | |
| Dynamic Load (Cr) | 7.84 kN |
| Static Load (Cor) | 16.5 kN |
| Performance | |
| Double Seal (ds) | 123.5 mm |
| Double High-Performance Seal (Dh) | 130.5 mm |
XRA12008C 120 mm 136 mm 8 mm 123.5 mm 130.5 mm Frequently Asked Questions about XRA12008C Ultra Thin XRA-C Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The XRA12008C utilizes high-purity bearing steel treated with PRS Bearings's advanced thermal processes. This creates a tough core that effectively absorbs shock loads while maintaining a highly wear-resistant surface on the raceways.
Absolutely. The PRS Bearings XRA12008C is a drop-in replacement for international models like THK RA12008C. It follows universal ISO dimensions, making it easy to upgrade your supply chain to PRS Bearings's high-quality standards.
Certainly. While the standard XRA12008C is pre-filled with high-grade industrial lubricant, PRS Bearings can provide custom fills, including food-grade (NSF H1), high-temperature, or extreme-pressure greases tailored to your operational needs.
To maximize the performance of the XRA12008C, PRS Bearings technical engineers suggest a shaft fit of k5/m5 for its 120 mm bore. For the 136 mm outer diameter, an H7 or J7 housing tolerance is ideal to accommodate thermal expansion while maintaining PRS Bearings's signature operational stability.
