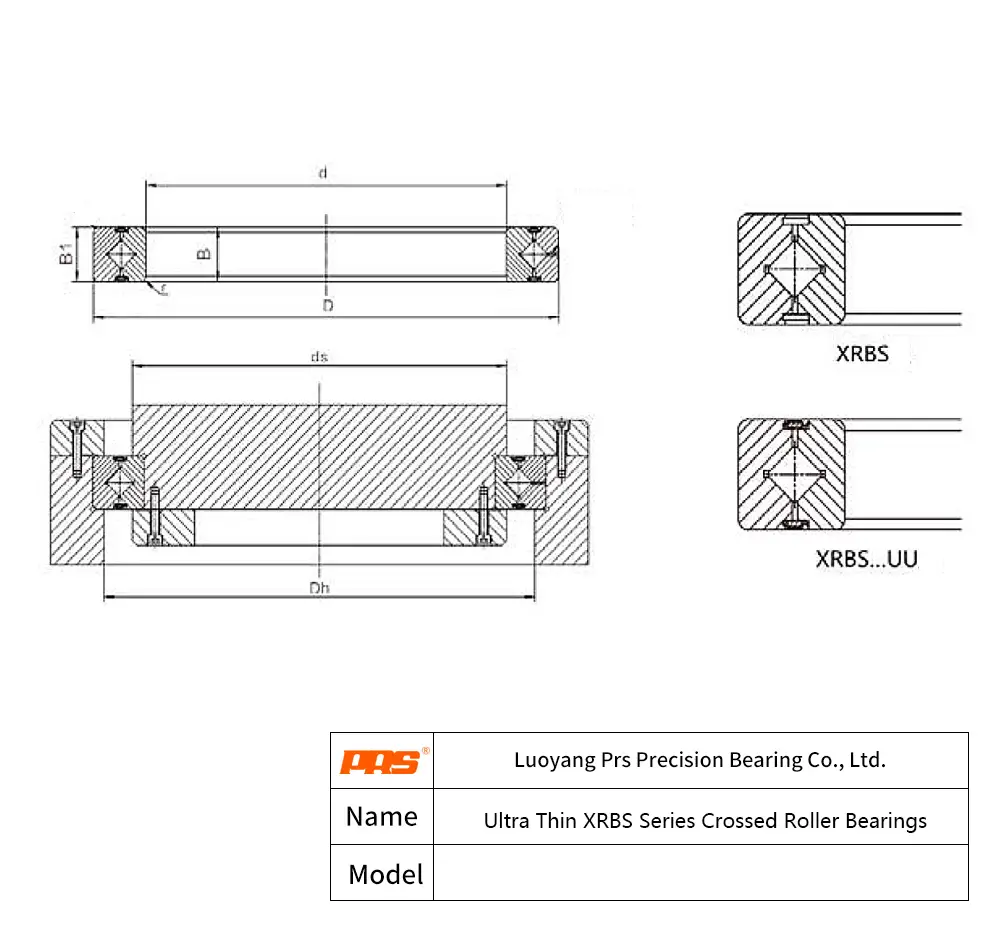

Manufactured by PRS Bearings, the XRBS10008 is a precision Ultra Thin XRBS Crossed Roller Bearings. You may consider it as an interchangeable alternative and replacement for THK CRBS1008. Key dimensional parameters include a 100 mm bore diameter, a 116 mm outer diameter, and a 8 mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
XRBS10008 - Ultra Thin XRBS Crossed Roller Bearings
Technical Specifications
| Direct Interchange | THK CRBS1008 |
|---|---|
| Overview | |
| Basic Model | XRBS10008 |
| Weight | 0.16 kg |
| Dimensions | |
| Bore Dia (d, mm) | 100 mm |
| Outer Dia (D, mm) | 116 mm |
| Width (B, mm) | 8 mm |
| Roller Pitch Dia (Dpw) | 107 mm |
| Load Ratings | |
| Dynamic Load (Cr) | 7.15 kN |
| Static Load (Cor) | 13.9 kN |
| Performance | |
| Double Seal (ds) | 103.5 mm |
| Double High-Performance Seal (Dh) | 110.5 mm |
XRBS10008 100 mm 116 mm 8 mm 103.5 mm 110.5 mm Frequently Asked Questions about XRBS10008 Ultra Thin XRBS Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Yes, beyond standard ISO specifications, PRS Bearings can produce the XRBS10008 with tailored radial internal clearances and ultra-precision accuracy classes to meet the strict demands of specialized OEM applications.
The PRS Bearings XRBS10008 features an advanced dual-sealing system with standard double seal (ds: 103.5) and double high-performance seal (Dh: 110.5) configurations. These specialized seals provide an effective barrier against dust, moisture, and contaminants, ensuring the internal raceways of the XRBS10008 remain uncontaminated. This significantly reduces maintenance costs and extends service life.
Yes, PRS Bearings strictly adheres to global environmental directives. The bearing steel and industrial lubricants used in the XRBS10008 are formulated to meet international safety standards, ensuring eco-friendly equipment integration.
The standard XRBS10008 from PRS Bearings is heat-stabilized for temperatures up to 120°C. For extreme heat applications, PRS Bearings offers custom S1 or S2 stabilization treatments to ensure the component maintains its 100 mm x 116 mm dimensions without warping.
