How do I select the appropriate XRBC bearing for my equipment?

To select the right XRBC bearing, consider the inner diameter, outer diameter, and width based on your equipment design. Evaluate the radial and axial loads your equipment may experience and choose a bearing with the required load capacity. Additionally, select the appropriate preload to ensure optimal bearing rigidity and precision during operation. Our technical team can provide expert selection advice and support to ensure you find the best high-precision bearing for your application.

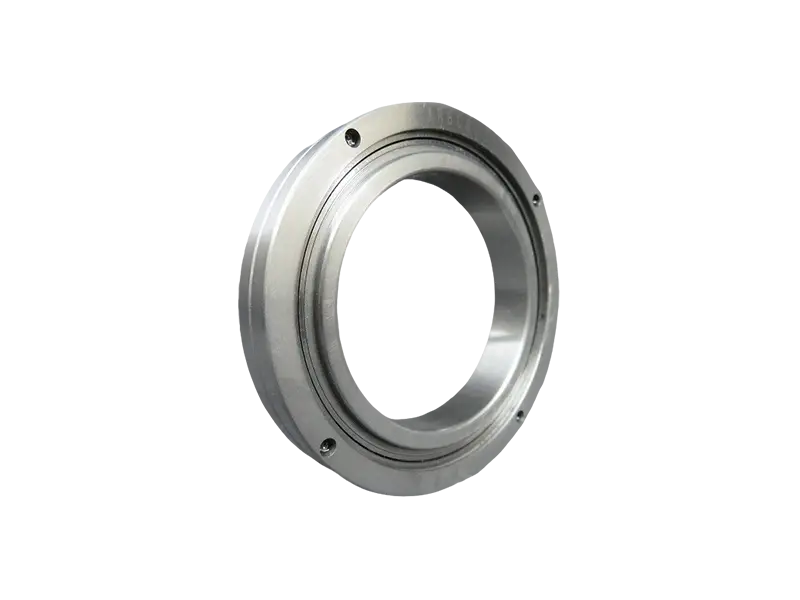

XRBC Crossed Roller Bearings

XRBC Crossed Roller Bearings: High Rigidity and Precision

The XRBC series crossed roller bearings are engineered for applications demanding high precision and rigidity, such as industrial robots, CNC machine tools, medical equipment, and precision reducers. These bearings offer a compact design, extreme precision, and high load capacity, making them a critical component for accurate and smooth equipment operation.

Internal Diameter

30mm - 600mm

Outside Diameter

55mm - 870mm

Width

10mm - 120mm

Basic Dynamic Load Rating

7.35kN - 2800kN

Send E-mail Request A Quote

Available Models & Specifications

Click on any part number to view detailed CAD drawings and download PDF specifications.

Part Number	Bore (d)	Outer (D)	Width (B)
XRBC 20025	200 mm	260 mm	25 mm
XRBC10020	100 mm	150 mm	20 mm
XRBC11020	110 mm	160 mm	20 mm
XRBC12025	120 mm	180 mm	25 mm
XRBC13025	130 mm	190 mm	25 mm

Why Choose XRBC Series Crossed Roller Bearings for Precision Applications?

The XRBC series crossed roller bearing is distinguished by its unique cross-shaped design, with cylindrical rollers arranged alternately between the inner and outer rings. This design enables the bearing to handle radial loads, axial loads, and overturning moments simultaneously, offering superior rigidity and precision over traditional two-bearing combinations. The compact design also conserves installation space and enhances the load-bearing capacity of the equipment.

These bearings are ideal for high-precision applications such as the joints of industrial robots, where minimal rotational misalignment is critical. The line contact between the rollers and raceways, along with their cross-shaped arrangement, allows XRBC bearings to withstand greater loads and resist overturning moments, ensuring stability under heavy loads or high speeds.

The XRBC series is not only limited to standard models but also supports customization, catering to a wide range of applications and specific performance requirements. This flexibility, combined with our commitment to quality and precision engineering, positions the XRBC series as a top choice for equipment that demands reliable and precise performance.

High precision for minimal rotational misalignment.
High rigidity and load capacity for stability under heavy loads.
Compact design for space efficiency and performance enhancement.

Key Technical Features of XRBC Crossed Roller Bearings

STEP 1

Extreme Precision for Minimal Misalignment

XRBC series bearings feature a large contact area and closely spaced rollers, which minimize rotational misalignment, making them suitable for equipment requiring precise motion control.

STEP 2

High Rigidity and Load Capacity

Due to the line contact and cross-shaped arrangement, XRBC bearings can handle greater loads and resist overturning moments, providing stability even under heavy loads or high speeds.

STEP 3

Compact and Space-Saving Design

The integrated design of XRBC series bearings reduces installation space and overall size, leading to more compact and efficient equipment compared to traditional bearing solutions.

STEP 4

Easy Installation and Assembly

One-piece construction of XRBC crossed roller bearings simplifies the installation process, reducing errors and improving assembly efficiency.

FAQs about XRBC Crossed Roller Bearings
