Manufactured by PRS Bearings, the XRBH 12025 is a precision XRBH Crossed Roller Bearings. You may consider it as an interchangeable alternative and replacement for IKO CRBH12025. Key dimensional parameters include a 120 mm bore diameter, a 180 mm outer diameter, and a 25 mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
XRBH 12025 - XRBH Crossed Roller Bearings
Technical Specifications
| Direct Interchange | IKO CRBH12025 |
|---|---|
| Overview | |
| Basic Model | XRBH 12025 |
| Weight | 2.62 kg |
| Dimensions | |
| Bore Dia (d, mm) | 120 mm |
| Outer Dia (D, mm) | 180 mm |
| Width (B, mm) | 25 mm |
| Roller Pitch Dia (Dpw) | 150 mm |
| Load Ratings | |
| Dynamic Load (Cr) | 73.4 kN |
| Static Load (Cor) | 108 kN |
| Performance | |
| Double Seal (ds) | 132 mm |
| Double High-Performance Seal (Dh) | 168 mm |

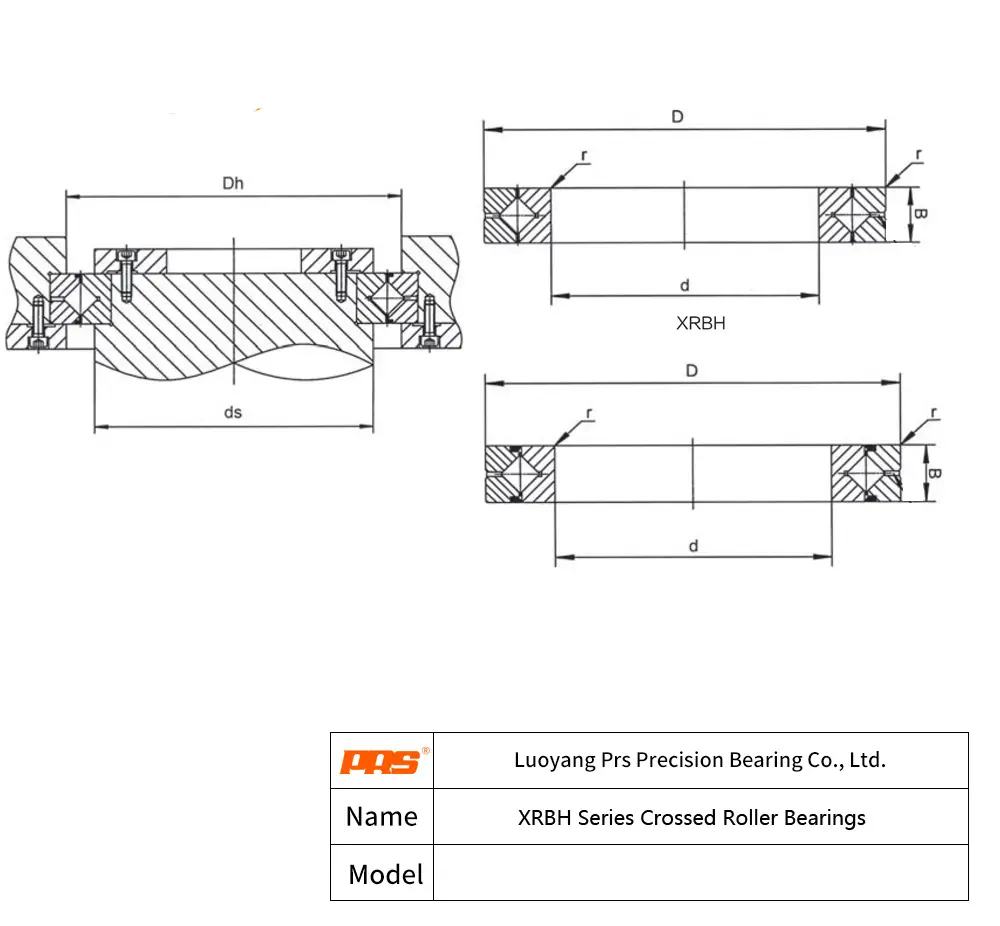

168 mm 132 mm 180 mm 120 mm 180 mm 120 mm XRBH 12025 25 mm 25 mm Frequently Asked Questions about XRBH 12025 XRBH Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The PRS Bearings XRBH 12025 features precision-machined corner chamfers designed to facilitate easier mounting. These ISO-standard chamfers ensure that the XRBH Crossed Roller Bearings fits snugly against shaft shoulders, preventing stress concentration at the 120 mm bore interface.
The XRBH 12025 produced by PRS Bearings adheres to strict ISO standards with a bore diameter of 120 mm, an outer diameter of 180 mm, and a width of 25 mm. PRS Bearings utilizes advanced grinding technology to ensure a radial section wall thickness of 30.0 mm and a balanced D/d ratio of 1.5 for high-precision housing fits.
As a dedicated bearing manufacturer, PRS Bearings maintains strategic inventory of the XRBH 12025 for prompt dispatch. For large OEM forecast orders, our lean production lines guarantee highly competitive lead times.
PRS Bearings recommends storing the XRBH 12025 in its original packaging in a clean, low-vibration warehouse. Maintaining a relative humidity below 60% and a stable room temperature ensures maximum shelf life.
