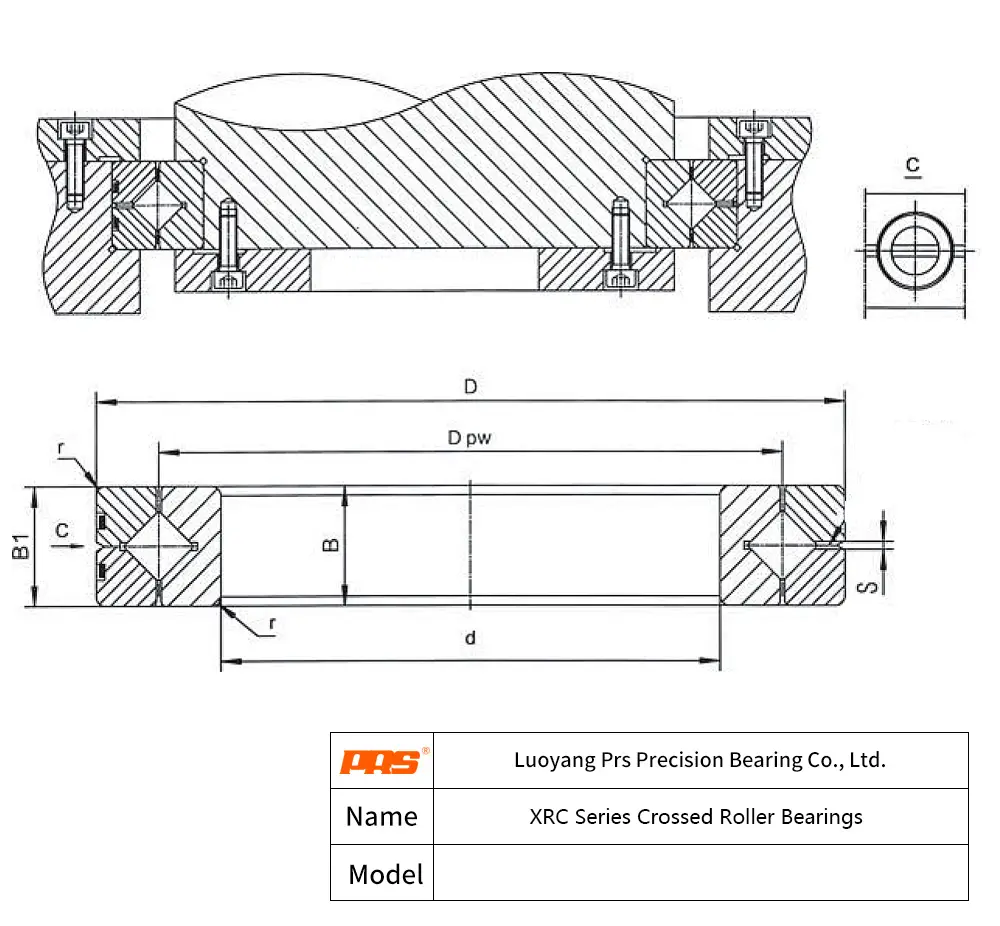

Manufactured by PRS Bearings, the XRC10013 is a precision XRC Crossed Roller Bearings. You may consider it as an interchangeable alternative and replacement for INA 52. Key dimensional parameters include a 100 mm bore diameter, a 125 mm outer diameter, and a 13 mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
XRC10013 - XRC Crossed Roller Bearings
Technical Specifications
| Direct Interchange | INA 52 |
|---|---|
| Overview | |
| Basic Model | XRC10013 |
| Weight | 18 kg |
| Dimensions | |
| Bore Dia (d, mm) | 100 mm |
| Outer Dia (D, mm) | 125 mm |
| Width (B, mm) | 13 mm |
| Roller Pitch Dia (Dpw) | 112 mm |
| Load Ratings | |
| Dynamic Load (Cr) | 28 kN |
| Static Load (Cor) | 106 kN |
| Performance | |
| Double Seal (ds) | 111.5 mm |
| Double High-Performance Seal (Dh) | 112.5 mm |
125 mm 13 mm 100 mm XRC10013 Frequently Asked Questions about XRC10013 XRC Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
To maximize the performance of the XRC10013, PRS Bearings technical engineers suggest a shaft fit of k5/m5 for its 100 mm bore. For the 125 mm outer diameter, an H7 or J7 housing tolerance is ideal to accommodate thermal expansion while maintaining PRS Bearings's signature operational stability.
The XRC10013 produced by PRS Bearings adheres to strict ISO standards with a bore diameter of 100 mm, an outer diameter of 125 mm, and a width of 13 mm. PRS Bearings utilizes advanced grinding technology to ensure a radial section wall thickness of 12.5 mm and a balanced D/d ratio of 1.25 for high-precision housing fits.
Every XRC10013 batch undergoes 100% automated vibration and noise testing at the PRS Bearings factory. We guarantee compliance with Z1/V1 standards, with premium Z3/V3 options available for high-end electric motors.
The PRS Bearings XRC10013 features an advanced dual-sealing system with standard double seal (ds: 111.5) and double high-performance seal (Dh: 112.5) configurations. These specialized seals provide an effective barrier against dust, moisture, and contaminants, ensuring the internal raceways of the XRC10013 remain uncontaminated. This significantly reduces maintenance costs and extends service life.
