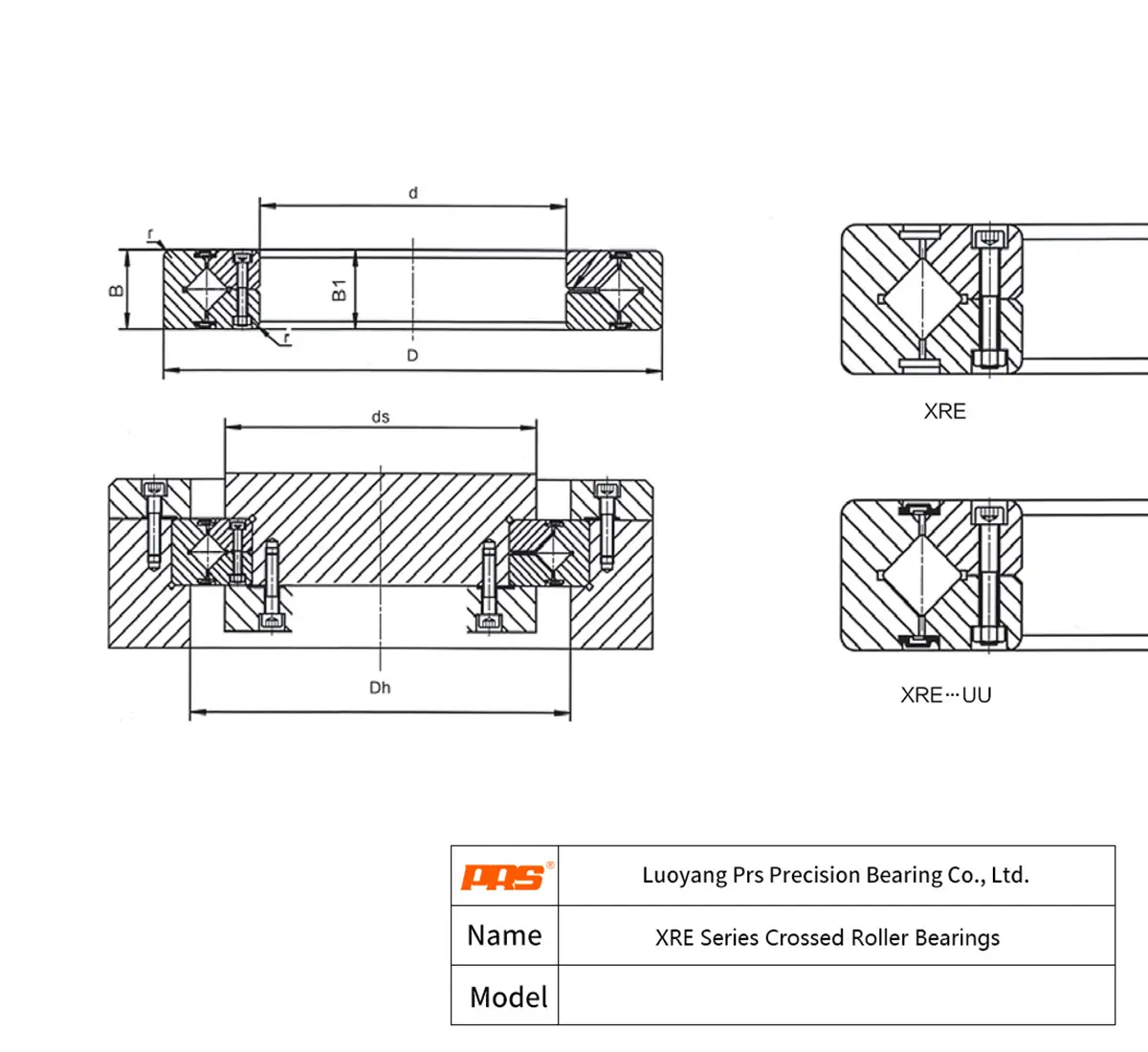

Manufactured by PRS Bearings, the XRE10016 is a precision XRE Crossed Roller Bearings. You may consider it as an interchangeable alternative and replacement for THK RE10016. Key dimensional parameters include a 100 mm bore diameter, a 140 mm outer diameter, and a 16 mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
XRE10016 - XRE Crossed Roller Bearings
Technical Specifications
| Direct Interchange | THK RE10016 |
|---|---|
| Overview | |
| Basic Model | XRE10016 |
| Weight | 0.83 kg |
| Dimensions | |
| Bore Dia (d, mm) | 100 mm |
| Outer Dia (D, mm) | 140 mm |
| Width (B, mm) | 16 mm |
| Roller Pitch Dia (Dpw) | 121.1 mm |
| Load Ratings | |
| Dynamic Load (Cr) | 31.7 kN |
| Static Load (Cor) | 48.6 kN |
| Performance | |
| Double Seal (ds) | 109 mm |
| Double High-Performance Seal (Dh) | 129 mm |
XRE10016 100 mm 140 mm 129 mm 16 mm Frequently Asked Questions about XRE10016 XRE Crossed Roller Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Thanks to its robust 31.7 dynamic load capacity, the PRS Bearings XRE10016 is highly sought after in mining, metallurgy, agricultural machinery, and heavy industrial gearboxes where operational reliability is paramount.
Engineered for heavy-duty endurance, the PRS Bearings XRE10016 offers a dynamic load rating (Cr) of 31.7 and a static load rating (Cor) of 48.6. These ratings reflect PRS Bearings's commitment to using high-fatigue-strength materials for demanding radial and axial force environments.
The standard PRS Bearings XRE10016 is designed for rigid configurations. For optimal performance, strict alignment of the 100 mm bore is critical, though PRS Bearings engineers can provide self-aligning bearing alternatives if your equipment is prone to deflection.
The L10 life of the PRS Bearings XRE10016 is calculated based on its 31.7 dynamic capacity and your specific application loads. By maintaining clean operating conditions and using PRS Bearings's recommended lubrication, users can expect significantly extended service intervals.
