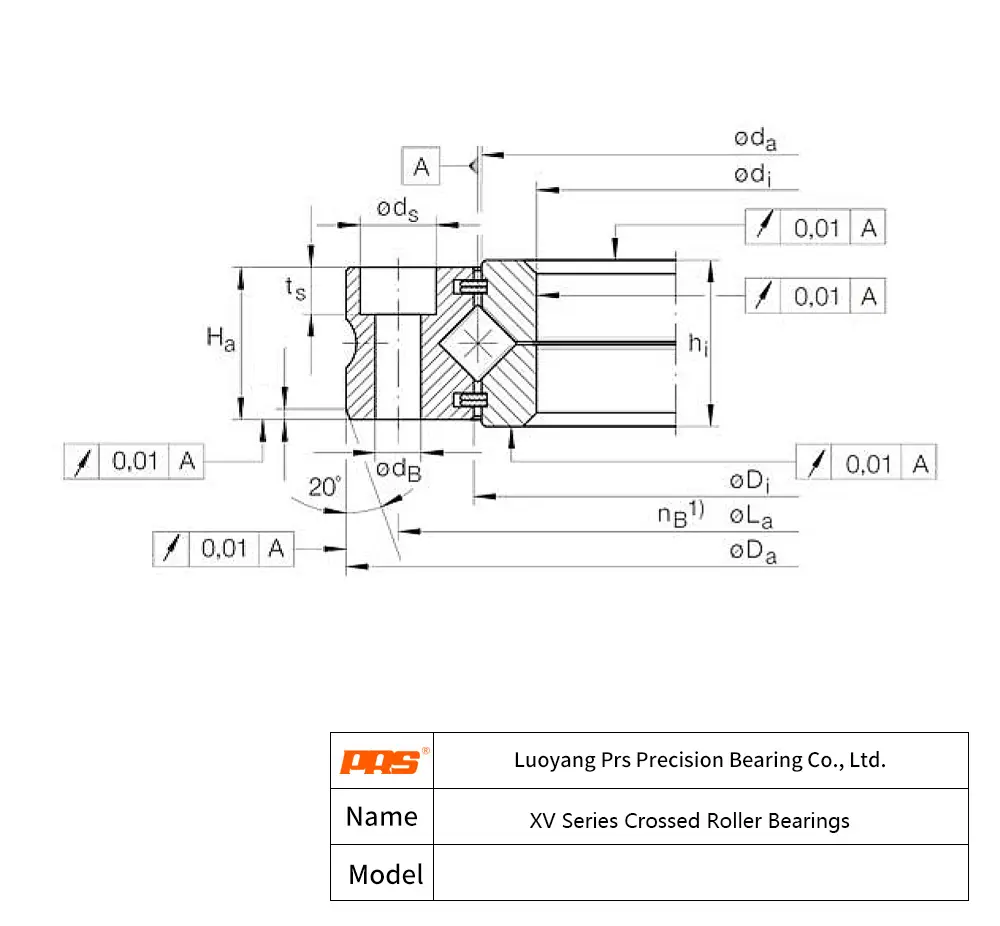

Manufactured by PRS Bearings, the XV30 is a precision XV Series Crossed Cylindrical Roller Bearing. Key dimensional parameters include a 30 mm bore diameter, a 75 mm outer diameter, and a 15 mm overall width. This component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
XV30 - XV Series Crossed Cylindrical Roller Bearing
Technical Specifications
| Overview | |
|---|---|
| Basic Model | XV30 |
| Weight | 0.37 kg |
| Dimensions | |
| Bore Dia (d, mm) | 30 mm |
| Outer Dia (D, mm) | 75 mm |
| Width (B, mm) | 15 mm |
| Load Ratings | |
| Dynamic Load (Cr) | 11.6 kN |
| Static Load (Cor) | 26 kN |
| Dynamic Axial Load (Ca) | 7.4 kN |
| Static Axial Load (Coa) | 10.4 kN |
| Performance | |
| Clearance / Preload | 1819 (Clearance)/ 910 (Preload) |
| Mounting Dimensions | |
| Inner Ring O.D. (da) | 41.5 mm |
| Outer Ring I.D. (Di) | 42.5 mm |
41.5 mm 42.5 mm XV30 Frequently Asked Questions about XV30 XV Series Crossed Cylindrical Roller Bearing
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
PRS Bearings recommends storing the XV30 in its original packaging in a clean, low-vibration warehouse. Maintaining a relative humidity below 60% and a stable room temperature ensures maximum shelf life.
Every XV30 batch undergoes 100% automated vibration and noise testing at the PRS Bearings factory. We guarantee compliance with Z1/V1 standards, with premium Z3/V3 options available for high-end electric motors.
The XV30 produced by PRS Bearings adheres to strict ISO standards with a bore diameter of 30 mm, an outer diameter of 75 mm, and a width of 15 mm. PRS Bearings utilizes advanced grinding technology to ensure a radial section wall thickness of 22.5 mm and a balanced D/d ratio of 2.5 for high-precision housing fits.
The PRS Bearings XV30 features precision-machined corner chamfers designed to facilitate easier mounting. These ISO-standard chamfers ensure that the XV Series Crossed Cylindrical Roller Bearing fits snugly against shaft shoulders, preventing stress concentration at the 30 mm bore interface.
