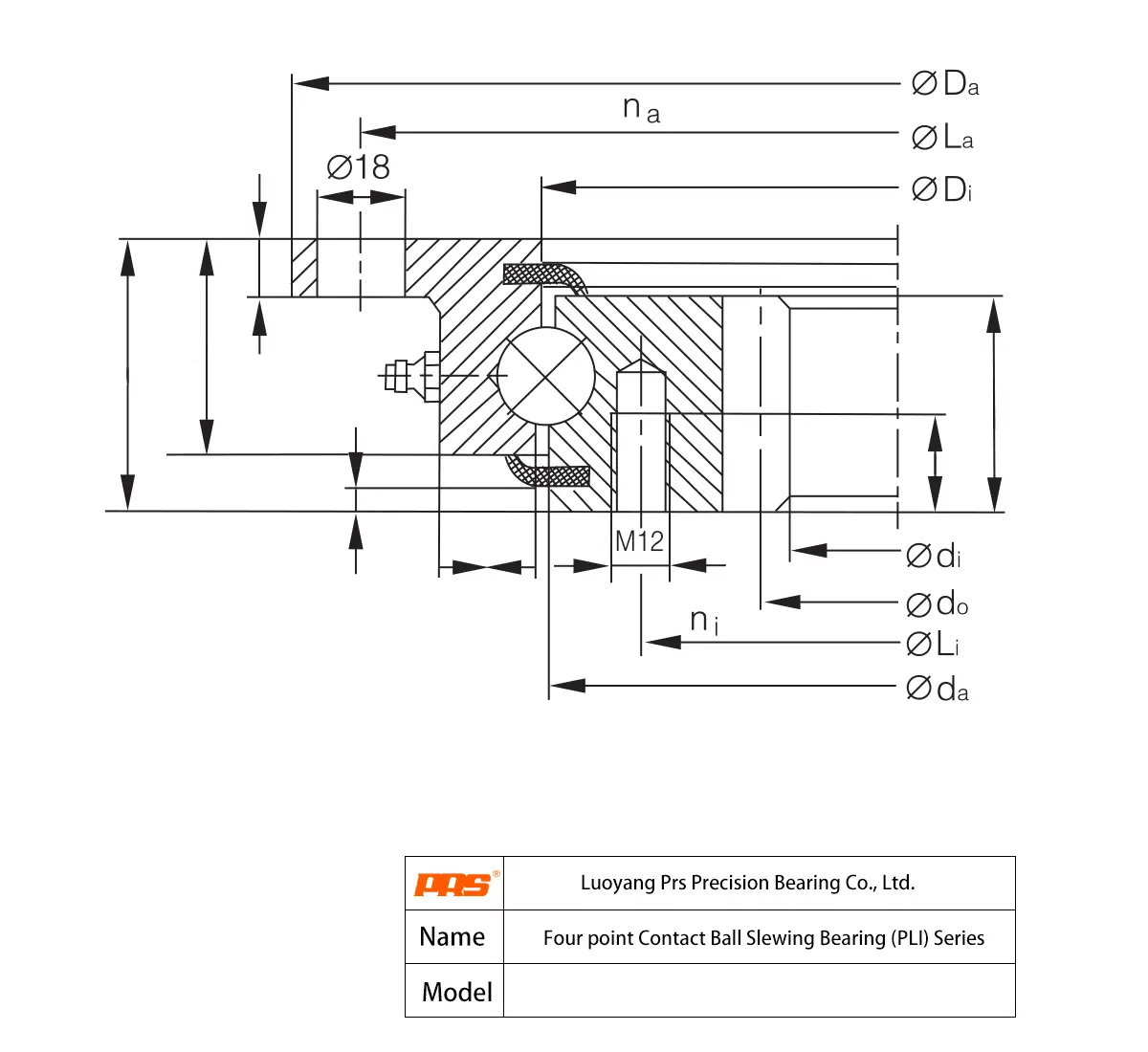

Manufactured by PRS Bearings, the PLI20.1044 is a precision PLI20 Series Four Point Contact Ball Slewing Bearings. You may consider it as an interchangeable alternative and replacement for INA VLI201094, SKF RKS.22 1091, KAYDON RK6-43N1Z, IMO 92-20 1091, Mijnsbergen I.1200.20.00, Rothe Erde 232.20.1000, Rollix 22-1091-01. Key dimensional parameters include a mm bore diameter, a mm outer diameter, and a mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
PLI20.1044 - PLI20 Series Four Point Contact Ball Slewing Bearings
Technical Specifications
| Direct Interchange | INA VLI201094, SKF RKS.22 1091, KAYDON RK6-43N1Z, IMO 92-20 1091, Mijnsbergen I.1200.20.00, Rothe Erde 232.20.1000, Rollix 22-1091-01 |
|---|---|
| Overview | |
| Basic Model | PLI20.1044 |
| Weight | 82 kg |
| Mounting Dimensions | |
| Outer Ring O.D. (Da) | 1198 mm |
| Inner Ring I.D. (di) | 984 mm |
| Mounting Holes | |
| Outer Ring Hole Pitch Dia. (La) | 1170 mm |
| Inner Ring Hole Pitch Dia. (Li) | 1055 mm |
| No. of Outer Ring Holes (na) | 16 |
| No. of Inner Ring Holes (ni) | 24 |
| Gear Parameters | |
| Pitch Circle Dia. (do) | 1000 mm |
| Module (m) | 8 |
| No. of Teeth (z) | 125 |
PLI20.1044 1198 mm 1170 mm 984 mm 1055 mm 24 16 Frequently Asked Questions about PLI20.1044 PLI20 Series Four Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
The PLI20.1044 utilizes high-purity bearing steel treated with PRS Bearings's advanced thermal processes. This creates a tough core that effectively absorbs shock loads while maintaining a highly wear-resistant surface on the raceways.
Absolutely. The precise manufacturing of the PRS Bearings PLI20.1044 results in stable, predictable vibration baselines. This makes it highly compatible with modern IoT condition monitoring sensors for early fault detection.
PRS Bearings recommends storing the PLI20.1044 in its original packaging in a clean, low-vibration warehouse. Maintaining a relative humidity below 60% and a stable room temperature ensures maximum shelf life.
Certainly. While the standard PLI20.1044 is pre-filled with high-grade industrial lubricant, PRS Bearings can provide custom fills, including food-grade (NSF H1), high-temperature, or extreme-pressure greases tailored to your operational needs.
