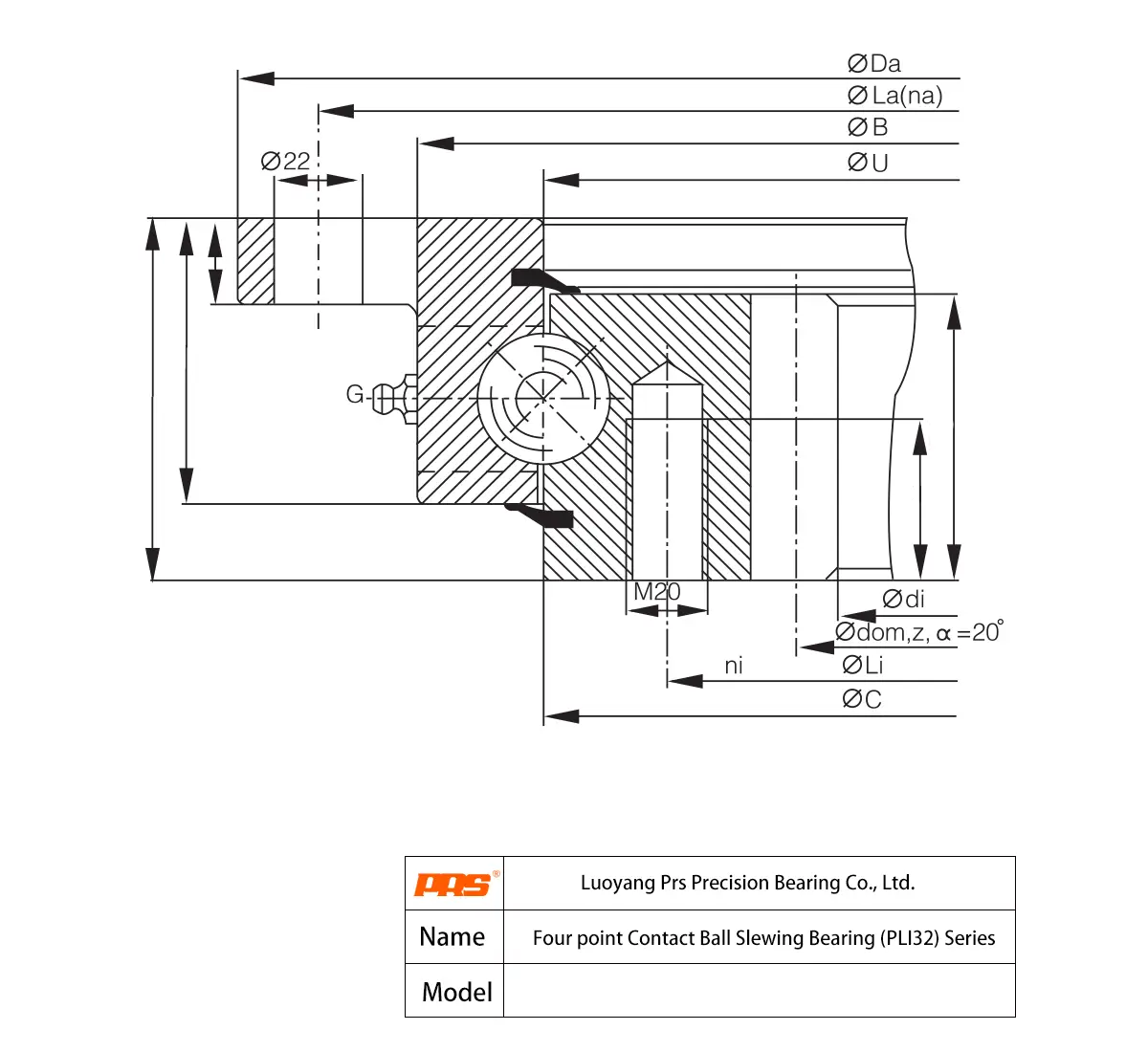

Manufactured by PRS Bearings, the PLI32.1200 is a precision PLI32 Series. You may consider it as an interchangeable alternative and replacement for IMO 92-32 1055, Mijnsbergen I.1200.32.00.C, Rothe Erde 282.30.1000. Key dimensional parameters include a mm bore diameter, a mm outer diameter, and a mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
PLI32.1200 - PLI32 Series
Technical Specifications
| Direct Interchange | IMO 92-32 1055, Mijnsbergen I.1200.32.00.C, Rothe Erde 282.30.1000 |
|---|---|
| Overview | |
| Basic Model | PLI32.1200 |
| Weight | 176 kg |
| Mounting Dimensions | |
| Outer Ring O.D. (Da) | 1200 mm |
| Inner Ring I.D. (di) | 912 mm |
| Mounting Holes | |
| Outer Ring Hole Pitch Dia. (La) | 1160 mm |
| Inner Ring Hole Pitch Dia. (Li) | 994 mm |
| No. of Outer Ring Holes (na) | 30 |
| No. of Inner Ring Holes (ni) | 30 |
| Gear Parameters | |
| Pitch Circle Dia. (do) | 930 mm |
| Module (m) | 10 |
| No. of Teeth (z) | 93 |
PLI32.1200 1200 mm 1160 mm 912 mm 994 mm 30 Frequently Asked Questions about PLI32.1200 PLI32 Series
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Absolutely. The precise manufacturing of the PRS Bearings PLI32.1200 results in stable, predictable vibration baselines. This makes it highly compatible with modern IoT condition monitoring sensors for early fault detection.
Depending on your thermal and fit requirements, PRS Bearings supplies the PLI32.1200 in C0 (Normal), C2 (Tight), or C3 (Loose) internal radial clearances. Proper clearance selection by PRS Bearings specialists helps prevent premature bearing seizure.
The PLI32.1200 is manufactured by PRS Bearings using premium-grade bearing steel that undergoes rigorous quality control processes. The company adheres to international standards including ISO 9001 and IATF 16949, ensuring consistent material purity and structural integrity across all production batches.
As a dedicated bearing manufacturer, PRS Bearings maintains strategic inventory of the PLI32.1200 for prompt dispatch. For large OEM forecast orders, our lean production lines guarantee highly competitive lead times.
