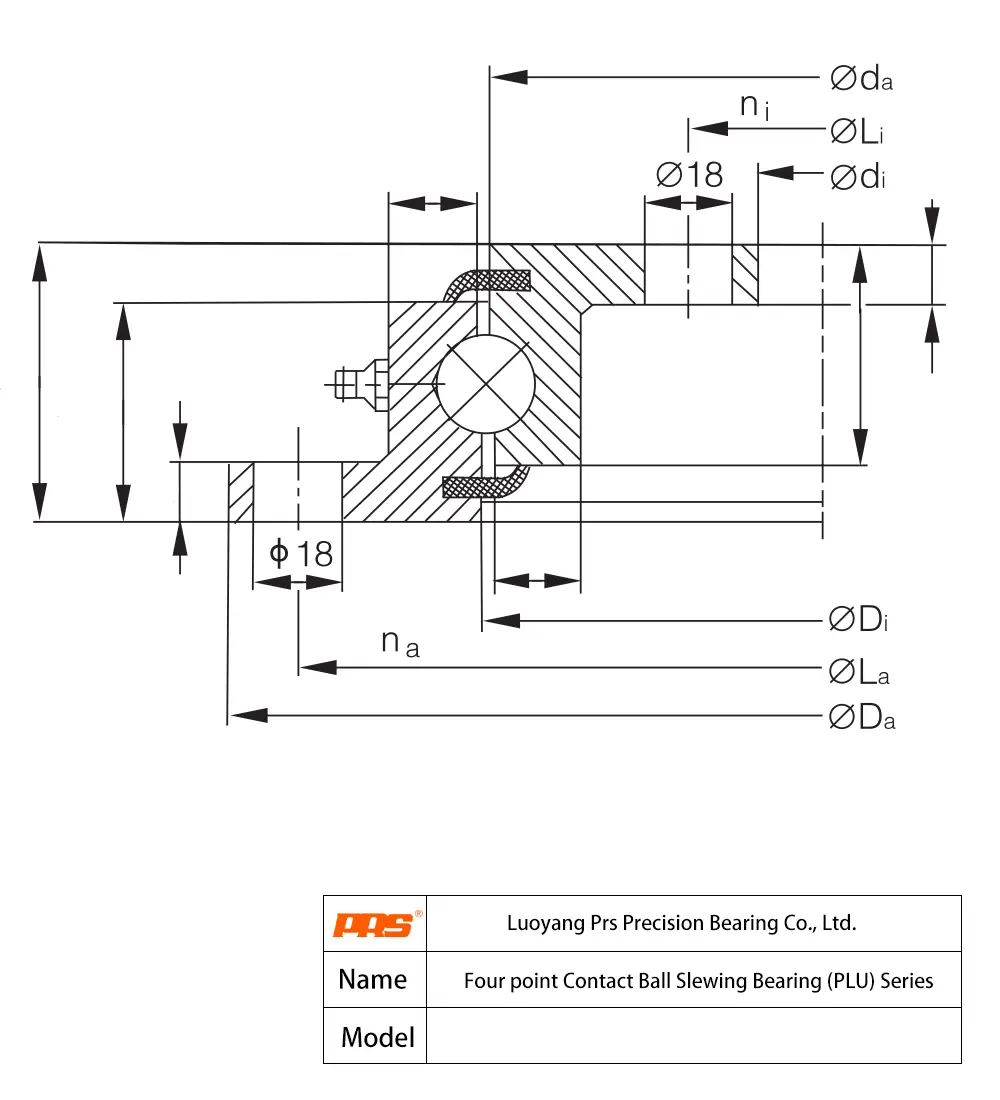

Manufactured by PRS Bearings, the PLU20.1094 is a precision PLU20 Series 4-Point Contact Ball Slewing Bearings. You may consider it as an interchangeable alternative and replacement for INA VLA201094, SKF RKS.21 1091, KAYDON RK6-43E1Z, IMO 91-20 1091, Mijnsbergen E.1200.20.00, Rothe Erde 231.20.1000, Rollix 21-1091-01. Key dimensional parameters include a mm bore diameter, a mm outer diameter, and a mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
PLU20.1094 - PLU20 Series 4-Point Contact Ball Slewing Bearings
Technical Specifications
| Direct Interchange | INA VLA201094, SKF RKS.21 1091, KAYDON RK6-43E1Z, IMO 91-20 1091, Mijnsbergen E.1200.20.00, Rothe Erde 231.20.1000, Rollix 21-1091-01 |
|---|---|
| Overview | |
| Basic Model | PLU20.1094 |
| Weight | 63 kg |
| Mounting Dimensions | |
| Outer Ring O.D. (Da) | 1198 mm |
| Inner Ring I.D. (di) | 984 mm |
| Mounting Holes | |
| Outer Ring Hole Pitch Dia. (La) | 1170 mm |
| Inner Ring Hole Pitch Dia. (Li) | 1012 mm |
| No. of Outer Ring Holes (na) | 16 |
| No. of Inner Ring Holes (ni) | 20 |
PLU20.1094 1012 mm 984 mm 1170 mm 1198 mm 16 mm Frequently Asked Questions about PLU20.1094 PLU20 Series 4-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Certainly. While the standard PLU20.1094 is pre-filled with high-grade industrial lubricant, PRS Bearings can provide custom fills, including food-grade (NSF H1), high-temperature, or extreme-pressure greases tailored to your operational needs.
Yes, beyond standard ISO specifications, PRS Bearings can produce the PLU20.1094 with tailored radial internal clearances and ultra-precision accuracy classes to meet the strict demands of specialized OEM applications.
Yes, PRS Bearings is a leading OEM partner. We offer bulk B2B pricing for the PLU20.1094, along with custom laser marking, specialized packaging, and technical documentation (MTR/COC) tailored to your company's requirements.
Yes, PRS Bearings strictly adheres to global environmental directives. The bearing steel and industrial lubricants used in the PLU20.1094 are formulated to meet international safety standards, ensuring eco-friendly equipment integration.
