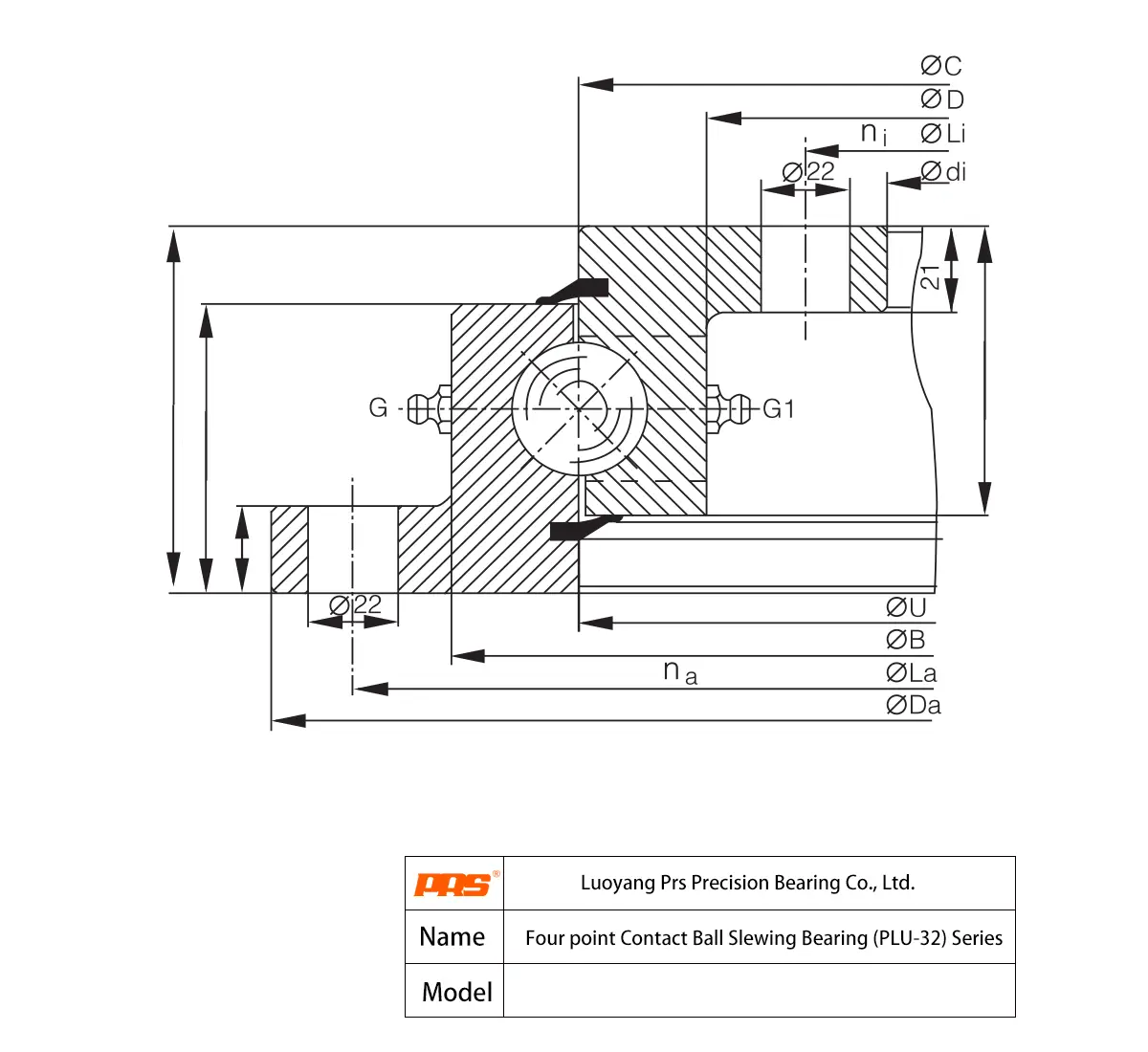

Manufactured by PRS Bearings, the PLU32.1100 is a precision PLU32 Series. You may consider it as an interchangeable alternative and replacement for IMO 90-32 0955, Mijnsbergen SD.1100.32.00.C, Rothe Erde 280.30.0900. Key dimensional parameters include a mm bore diameter, a mm outer diameter, and a mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
PLU32.1100 - PLU32 Series
Technical Specifications
| Direct Interchange | IMO 90-32 0955, Mijnsbergen SD.1100.32.00.C, Rothe Erde 280.30.0900 |
|---|---|
| Overview | |
| Basic Model | PLU32.1100 |
| Weight | 131 kg |
| Mounting Dimensions | |
| Outer Ring O.D. (Da) | 1100 mm |
| Inner Ring I.D. (di) | 805 mm |
| Mounting Holes | |
| Outer Ring Hole Pitch Dia. (La) | 1060 mm |
| Inner Ring Hole Pitch Dia. (Li) | 845 mm |
| No. of Outer Ring Holes (na) | 30 |
| No. of Inner Ring Holes (ni) | 30 |
PLU32.1100 1100 mm 805 mm 1060 mm 845 mm 30 mm 30 mm Frequently Asked Questions about PLU32.1100 PLU32 Series
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Depending on your thermal and fit requirements, PRS Bearings supplies the PLU32.1100 in C0 (Normal), C2 (Tight), or C3 (Loose) internal radial clearances. Proper clearance selection by PRS Bearings specialists helps prevent premature bearing seizure.
Yes, PRS Bearings strictly adheres to global environmental directives. The bearing steel and industrial lubricants used in the PLU32.1100 are formulated to meet international safety standards, ensuring eco-friendly equipment integration.
Yes, while the standard PRS Bearings PLU32.1100 meets ISO P0 (ABEC-1) levels, PRS Bearings also manufactures high-precision variants in P6 (ABEC-3) and P5 (ABEC-5) for applications requiring minimal runout and extreme rotational accuracy.
Every PLU32.1100 batch undergoes 100% automated vibration and noise testing at the PRS Bearings factory. We guarantee compliance with Z1/V1 standards, with premium Z3/V3 options available for high-end electric motors.
