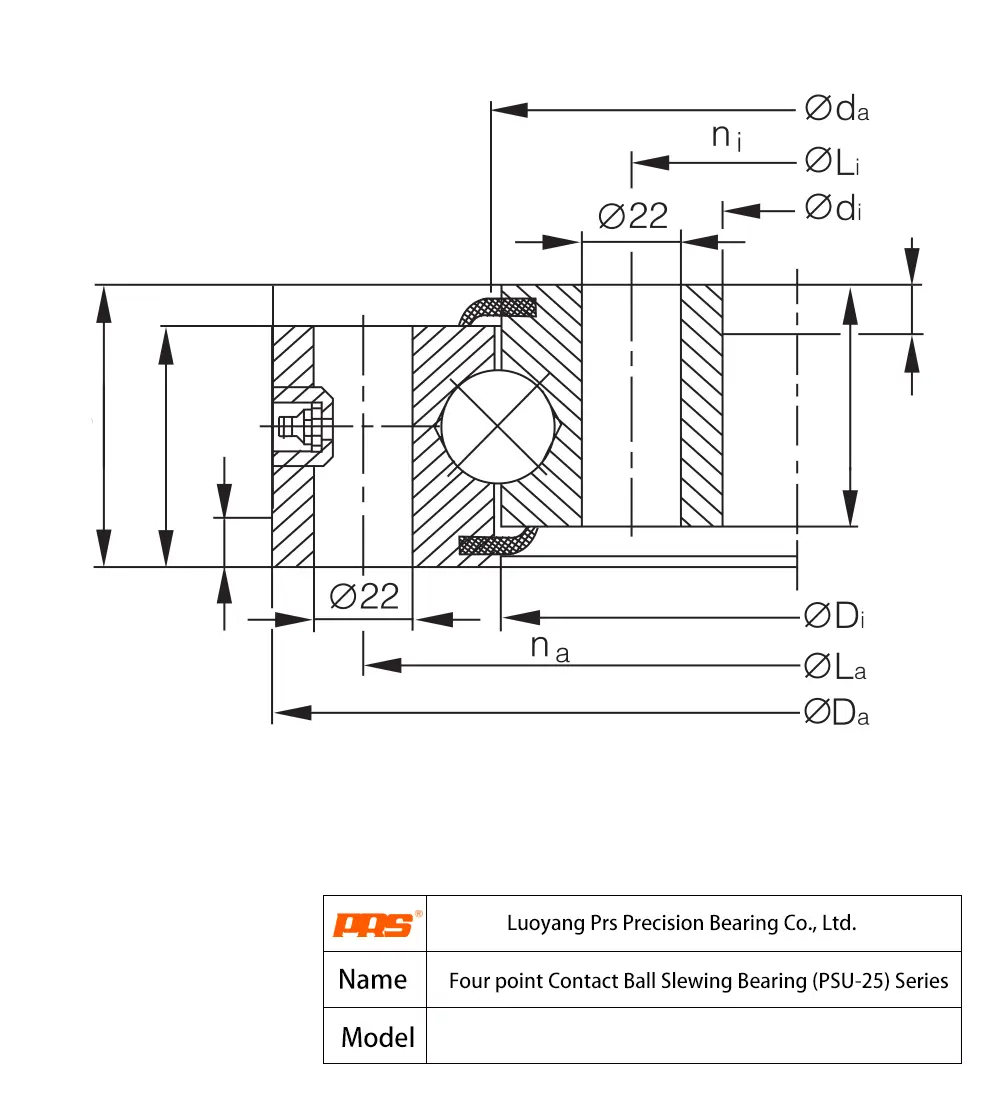

Manufactured by PRS Bearings, the PSU25.1255 is a precision PSU25 Series 4-Point Contact Ball Slewing Bearings. You may consider it as an interchangeable alternative and replacement for IMO 10-25 1255, Rothe Erde 060.25.1255. Key dimensional parameters include a mm bore diameter, a mm outer diameter, and a mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
PSU25.1255 - PSU25 Series 4-Point Contact Ball Slewing Bearings
Technical Specifications
| Direct Interchange | IMO 10-25 1255, Rothe Erde 060.25.1255 |
|---|---|
| Overview | |
| Basic Model | PSU25.1255 |
| Weight | 150 kg |
| Mounting Dimensions | |
| Outer Ring O.D. (Da) | 1355 mm |
| Inner Ring I.D. (di) | 1155 mm |
| Mounting Holes | |
| Outer Ring Hole Pitch Dia. (La) | 1315 mm |
| Inner Ring Hole Pitch Dia. (Li) | 1195 mm |
| No. of Outer Ring Holes (na) | 42 |
| No. of Inner Ring Holes (ni) | 42 |
PSU25.1255 1355 mm 1315 mm 42 mm 1155 mm 1195 mm 42 mm Frequently Asked Questions about PSU25.1255 PSU25 Series 4-Point Contact Ball Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
PRS Bearings provides a comprehensive B2B warranty for the PSU25.1255 against manufacturing defects. Furthermore, our engineering team offers ongoing technical support to ensure the PSU25 Series 4-Point Contact Ball Slewing Bearings operates optimally within your specific machinery.
The PSU25.1255 is manufactured by PRS Bearings using premium-grade bearing steel that undergoes rigorous quality control processes. The company adheres to international standards including ISO 9001 and IATF 16949, ensuring consistent material purity and structural integrity across all production batches.
Absolutely. The PRS Bearings PSU25.1255 is a drop-in replacement for international models like IMO 10-25 1255, Rothe Erde 060.25.1255. It follows universal ISO dimensions, making it easy to upgrade your supply chain to PRS Bearings's high-quality standards.
The PSU25.1255 utilizes high-purity bearing steel treated with PRS Bearings's advanced thermal processes. This creates a tough core that effectively absorbs shock loads while maintaining a highly wear-resistant surface on the raceways.
