What are the benefits of using XRSI series bearings in robotic joints?

XRSI series bearings offer high precision and rigidity, which are essential for robotic joints requiring precise motion control. Their compact design also allows for space-saving integration into the robot's structure, enhancing overall performance and reliability.

How do XRSI series bearings contribute to the performance of medical equipment?

In medical equipment such as CT machines and operating tables, XRSI series bearings provide the high operational precision and reliability needed for accurate diagnostics and surgeries. Their ability to handle multiple load types ensures stable and precise equipment operation.

XRSI Series

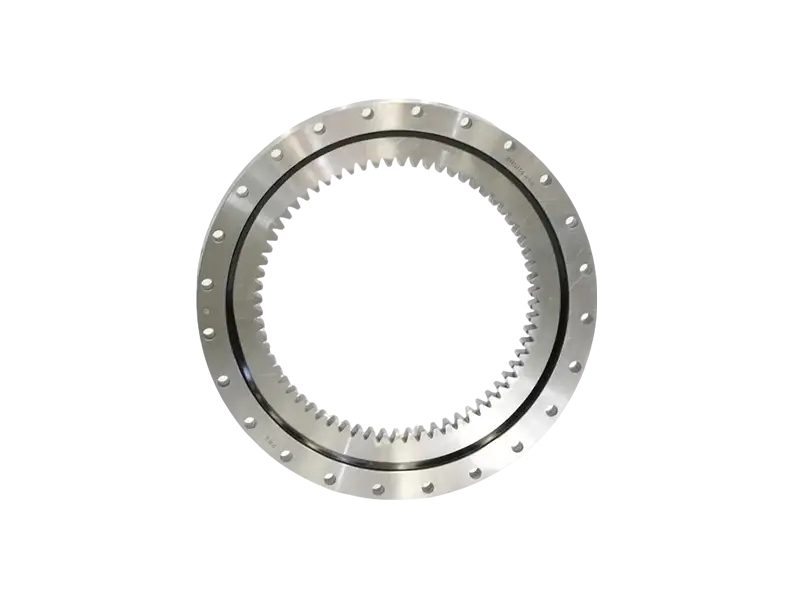

XRSI Series - High Precision Slewing Bearings

The XRSI series cross roller slewing bearings are engineered for applications demanding high rigidity and rotational accuracy. These bearings are characterized by their unique internal structure that allows them to handle multiple loads simultaneously, making them ideal for precision-critical machinery.

Series

XRSI

Load Type

Radial, Axial, and Tilt

Precision

High

Material

Steel

Available Models & Specifications

Click on any part number to view detailed CAD drawings and download PDF specifications.

Part Number	Bore (d)	Outer (D)	Width (B)
XRSI14.1094	mm	mm	mm
XRSI14.414	mm	mm	mm
XRSI14.544	mm	mm	mm
XRSI14.644	mm	mm	mm
XRSI14.744	mm	mm	mm

Why Choose XRSI Series for Precision Applications

The XRSI series cross roller slewing bearings are designed with a 90° crossing arrangement of cylindrical rollers, enabling them to withstand radial, axial, and tilting moments all at once. This design not only provides high rigidity and rotational accuracy but also ensures low runout during operation, critical for machinery with stringent precision requirements.

These bearings are compact and lightweight, simplifying mechanism design and reducing the overall weight of equipment. Their multi-directional load capacity makes them suitable for heavy and complex load conditions, such as those found in industrial robots, medical equipment, and radar systems.

The XRSI series is also known for its ease of installation due to its one-piece construction, which minimizes assembly time and potential errors. This, combined with its high precision and rigidity, positions the XRSI series as a leading choice in high-tech fields.

High precision manufacturing process ensures low runout.
Compact design replaces a pair of conventional bearings, saving space.
Multi-directional load capacity for heavy and complex loads.

Key Technical Features of XRSI Series

STEP 1

High Rigidity and Precision

XRSI series bearings utilize line contact between rollers and raceways to reduce elastic deformation, maintaining excellent rigidity under high loads and ensuring low operational runout.

STEP 2

Compact and Lightweight Design

The internal roller cross-arrangement allows one XRSI bearing to replace two conventional bearings, simplifying design and reducing equipment weight, which is beneficial for space and weight-sensitive applications.

STEP 3

Multi-directional Load Capacity

Capable of withstanding radial, axial, and tilting moments simultaneously, XRSI series bearings are ideal for applications with heavy and complex load conditions, such as in industrial machinery and robotics.

STEP 4

Ease of Installation

One-piece construction of XRSI series slewing bearings simplifies the installation process, reducing assembly time and the likelihood of errors, which is crucial for efficient manufacturing and maintenance.
