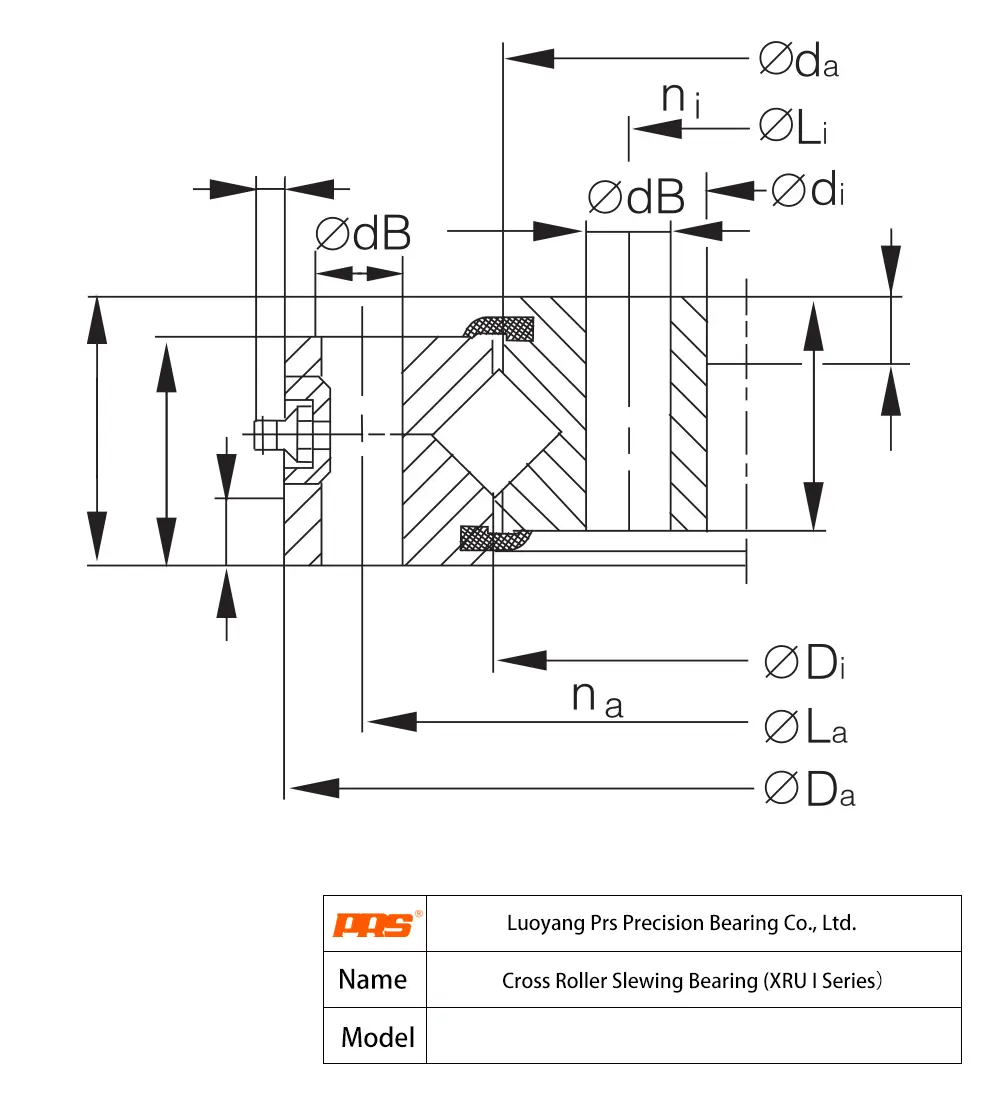

Manufactured by PRS Bearings, the XRU16.0220 is a precision XRU I Series Crossed Roller Slewing Bearings. You may consider it as an interchangeable alternative and replacement for INA XU160220. Key dimensional parameters include a mm bore diameter, a mm outer diameter, and a mm overall width. With matching boundary dimensions, this component is designed to meet standard load requirements and ensure consistent operational performance. For comprehensive technical evaluation, please explore the detailed specifications, dimensional data, product images, and CAD drawings provided below. A complete PDF data sheet is also readily available for direct download to support your engineering and procurement needs.
XRU16.0220 - XRU I Series Crossed Roller Slewing Bearings
Technical Specifications
| Direct Interchange | INA XU160220 |
|---|---|
| Overview | |
| Basic Model | XRU16.0220 |
| Weight | 16 kg |
| Mounting Dimensions | |
| Outer Ring O.D. (Da) | 302 mm |
| Inner Ring O.D. (da) | 219 mm |
| Inner Ring I.D. (di) | 138 mm |
| Outer Ring I.D. (Di) | 221 mm |
| Mounting Holes | |
| Outer Ring Hole Pitch Dia. (La) | 270 mm |
| Inner Ring Hole Pitch Dia. (Li) | 170 mm |
| No. of Outer Ring Holes (na) | 10 |
XRU16.0220 302 mm 270 mm 221 mm 138 mm 170 mm 219 mm 10 mm Frequently Asked Questions about XRU16.0220 XRU I Series Crossed Roller Slewing Bearings
Find key technical answers regarding dimensions, specifications, and replacement options for this model.
Absolutely. The PRS Bearings XRU16.0220 is a drop-in replacement for international models like INA XU160220. It follows universal ISO dimensions, making it easy to upgrade your supply chain to PRS Bearings's high-quality standards.
As a dedicated bearing manufacturer, PRS Bearings maintains strategic inventory of the XRU16.0220 for prompt dispatch. For large OEM forecast orders, our lean production lines guarantee highly competitive lead times.
PRS Bearings recommends storing the XRU16.0220 in its original packaging in a clean, low-vibration warehouse. Maintaining a relative humidity below 60% and a stable room temperature ensures maximum shelf life.
Yes, while the standard PRS Bearings XRU16.0220 meets ISO P0 (ABEC-1) levels, PRS Bearings also manufactures high-precision variants in P6 (ABEC-3) and P5 (ABEC-5) for applications requiring minimal runout and extreme rotational accuracy.
