How do I select the appropriate C type radial contact ball bearings for my application?

When selecting a C type radial contact ball bearings, consider the load type and size, speed requirements, environmental conditions, and accuracy grade. Evaluate whether your application primarily handles radial loads or mixed loads and choose the appropriate size and model based on the load magnitude. Ensure that the bearing can meet your maximum speed requirements and consider the operating environment's temperature, humidity, and presence of contaminants to determine whether to choose an open or sealed bearing. Select the tolerance grade based on the accuracy requirements of your equipment.

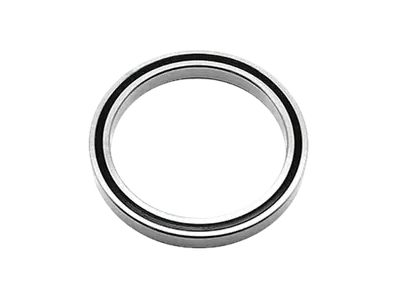

C Type Radial Contact Ball Bearing

C Type Radial Contact Ball Bearings - Precision in Lightweight Design

C type radial contact ball bearings are engineered for applications demanding high precision and load capacity within a compact form factor. These bearings are designed to reduce size and weight while maintaining performance, making them ideal for precision equipment in industries such as aerospace, robotics, and medical devices.

Type

C Type Radial Contact

Load Rating

303 N to 7272 N (Static) / 255 N to 3111 N (Dynamic)

Speed

1160 RPM to 5580 RPM

Material

Snapover separator, 5/32 inch balls, F=0.8

Available Models & Specifications

Click on any part number to view detailed CAD drawings and download PDF specifications.

Search Part Number

Bore Dia

Outer Dia

Part Number	Bore (d)	Outer (D)	Width (B)
PC10008	100 mm	116 mm	mm
PC10008UU	100 mm	116 mm	mm
PC10013	100 mm	126 mm	mm
PC10020	100 mm	140 mm	mm
PC11008	110 mm	126 mm	mm

Why C Type Radial Contact Ball Bearings Matter for Precision Equipment

C type radial contact ball bearings are distinguished by their thin-wall design, which allows for significant weight reduction and space savings without compromising load-bearing capacity. They are designed to handle radial loads and can withstand bidirectional axial loads to a certain extent, making them versatile for a range of applications.

These bearings are primarily used in sectors where precision and minimal space are of the essence. The aerospace industry, for example, relies on them for satellite, drone, and aircraft control systems due to their lightweight and high-precision characteristics. Similarly, in robotics, these bearings provide the necessary precision and weight reduction for robotic arms, joints, and servo motors.

When comparing C type radial contact ball bearings to other specifications within the same series, their unique selling point is the balance they offer between load capacity, precision, and space efficiency. This balance is crucial for applications where every gram and every millimeter count, such as in medical equipment like CT scanners and surgical robots.

High load capacity with a compact design
Low friction for smooth operation
Versatile load handling for radial and bidirectional axial loads

Key Technical Features of C Type Radial Contact Ball Bearings

STEP 1

Lightweight and Space-Saving Design

C type radial contact ball bearings offer a compact design that significantly reduces the size and weight of equipment, making them ideal for applications where space and weight are at a premium.

STEP 2

High Load Carrying Capacity

These bearings are designed to handle high radial loads and can manage moderate bidirectional axial loads, providing stability and reliability in various industrial applications.

STEP 3

Precision Manufacturing

Precision manufacturing processes ensure that C type radial contact ball bearings offer low friction and high rotational accuracy, which is essential for applications requiring smooth and precise motion.

STEP 4

Versatility in Applications

Their ability to accommodate radial loads and moderate bidirectional axial loads makes C Type Radial Contact Ball Bearings highly adaptable for a wide range of applications, from aerospace to medical equipment.
