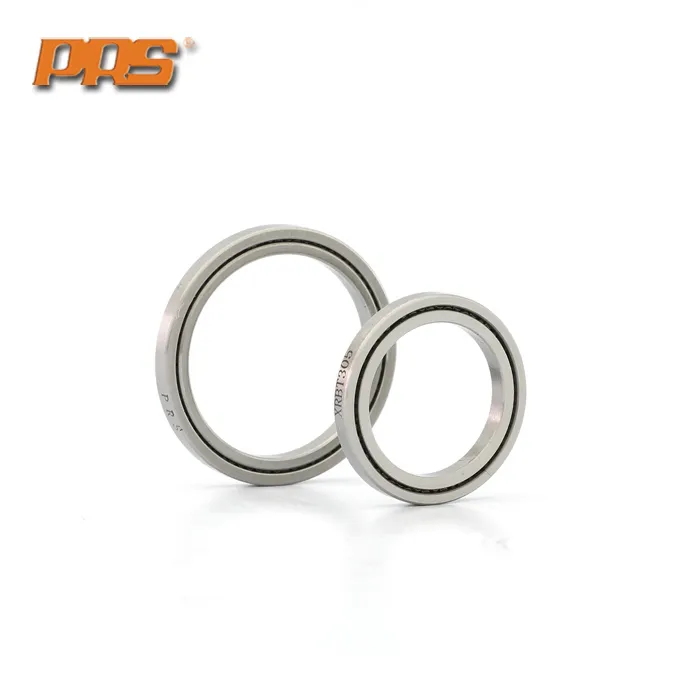

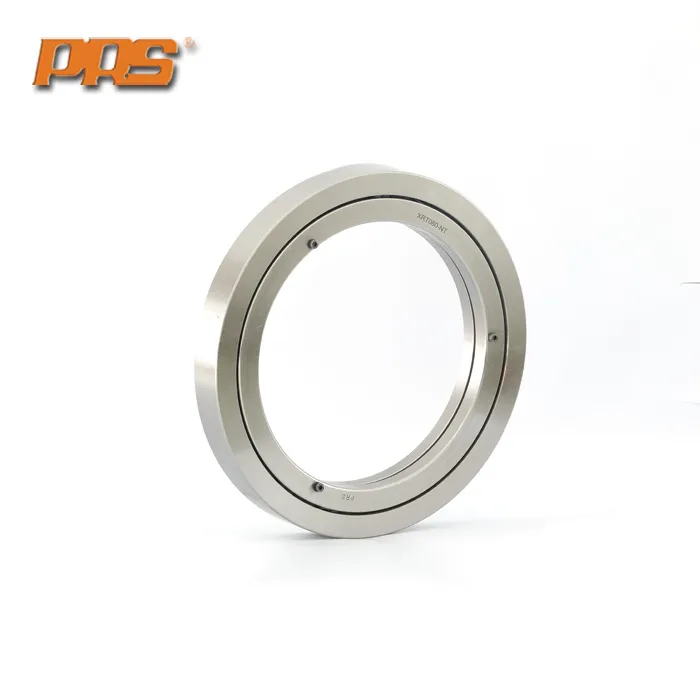

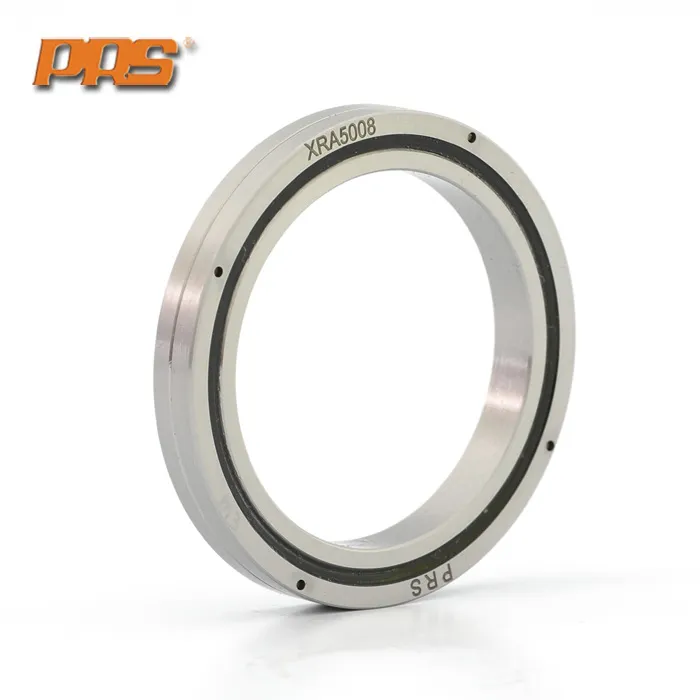

Crossed roller bearings are high-precision, rigid bearings designed for applications requiring excellent rotational accuracy and stiffness. They achieve this by incorporating cylindrical rollers arranged in a 'V' shape, with alternate rollers oriented at 90 degrees to each other. This configuration allows a single bearing to handle radial, axial, and moment loads simultaneously.
Analysis: These are fundamental for fitting the bearing into your design. Precise machining of the housing and shaft is crucial for optimal performance. Variations in these dimensions beyond tolerance can lead to misalignment, reduced life, and increased friction.
Analysis: This specifies the geometric precision of the bearing components (e.g., runout, parallelism, perpendicularity).
P0 (Normal Class): Suitable for general industrial machinery where high precision isn't paramount.
P6, P5, P4, P2 (Higher Precision): Progressively higher accuracy, used in applications like machine tool turntables, robotic joints, and measurement equipment where precise positioning and minimal runout are critical. Higher accuracy generally means tighter tolerances, better surface finish, and more stringent manufacturing processes, leading to higher cost.
Analysis: This refers to the precision of the bearing's rotation. Key parameters include:
Radial Runout: Variation in the radial position of the inner or outer ring during rotation.
Axial Runout: Variation in the axial position of the inner or outer ring.
Perpendicularity of Mounting Surface to Axis: How precisely the mounting face is perpendicular to the bearing's rotational axis.
Importance: Critical for applications requiring precise angular positioning, such as rotary tables in CNC machines or robotic manipulators.
Analysis: These values, determined by ISO standards, indicate the bearing's capacity to handle loads.
C (Dynamic): The constant radial load that a group of apparently identical bearings can theoretically endure for a basic rating life of one million revolutions. Used for applications with continuous rotation under load.
C0 (Static): The static radial load which corresponds to a total permanent deformation of rolling element and raceway at the most heavily stressed contact of approximately 0.0001 of the rolling element diameter. Used for applications with static loads, slow oscillation, or infrequent rotation.
Selection: The required load rating depends on the applied loads, desired service life, and operating conditions. Safety factors are often applied, especially for shock loads.
Analysis: This indicates the maximum speed the bearing can operate at without excessive heat generation or premature wear.
Factors affecting speed: Lubrication type (oil allows higher speeds), internal clearance, cage design, and cooling.
Consequences of exceeding: Overheating, lubrication breakdown, accelerated wear, and potential bearing failure.
Analysis: This is a crucial characteristic for crossed roller bearings. It refers to the bearing's resistance to deformation under load.
High Rigidity: Achieved by the crossed roller arrangement and preloading. It minimizes elastic deformation, which is vital for maintaining positioning accuracy in machine tools and robotics.
Measurement: Often specified as an angular stiffness (e.g., N·m/arcsec) or linear stiffness (e.g., N/µm).
Impact: Directly affects the precision and repeatability of the overall system.
Analysis: Crossed roller bearings are often supplied with a specific preload.
Purpose: Eliminates internal clearance, increases rigidity, and improves rotational accuracy.
Types: Standard preload (C1, C2, C3) or specific torque preload.
Impact: While beneficial for rigidity, excessive preload can lead to increased friction, heat generation, and reduced bearing life. It's a critical design parameter that needs careful consideration.
Analysis: Specifies the acceptable temperature limits for the bearing material and lubricant.
Standard: Typically -20°C to +80°C or +100°C for standard steel bearings with conventional grease.
High/Low Temperature Applications: May require special materials, coatings, or lubricants.
Impact: Extreme temperatures can affect material properties, lubricant viscosity, and bearing life.
Analysis:
Bearing Steel: Typically high-carbon chromium steel (e.g., GCr15, SAE 52100) for raceways and rollers due to its hardness and wear resistance.
Cage Material: Often brass, synthetic resin (e.g., polyamide), or steel. The choice affects speed capability, noise, and operating temperature.
Seals (if applicable): Nitrile rubber (NBR) or fluoro rubber (FPM) for dust and splash protection.
Special Materials: Stainless steel for corrosive environments, ceramic rollers for very high speeds or electrical insulation.
Analysis:
Grease: Common for sealed bearings or those with moderate speeds. Specifies type (e.g., lithium soap, urea-based), consistency, and amount.
Oil: Used for higher speeds, higher temperatures, or when integrated into a centralized lubrication system.
Importance: Proper lubrication prevents wear, reduces friction, dissipates heat, and protects against corrosion.
Maintenance: Relubrication intervals depend on operating conditions and lubricant type.
Analysis:
Sealed Bearings (e.g., RU, RB, RE series): Have integrated seals to retain lubricant and prevent contaminants. Beneficial for dirty environments, simplifies assembly.
Open Bearings: Require external sealing and lubrication systems. Offers higher speed capability and can be used in clean environments or with oil mist lubrication.
In summary, when analyzing crossed roller bearing specifications, it's crucial to:
Match the bearing's capabilities to the application's specific requirements (load, speed, accuracy, environment).
Consider the entire system (housing, shaft, mounting, lubrication, sealing) as these interact with the bearing's performance.
Understand the trade-offs (e.g., higher accuracy often means higher cost and lower load capacity or speed).
