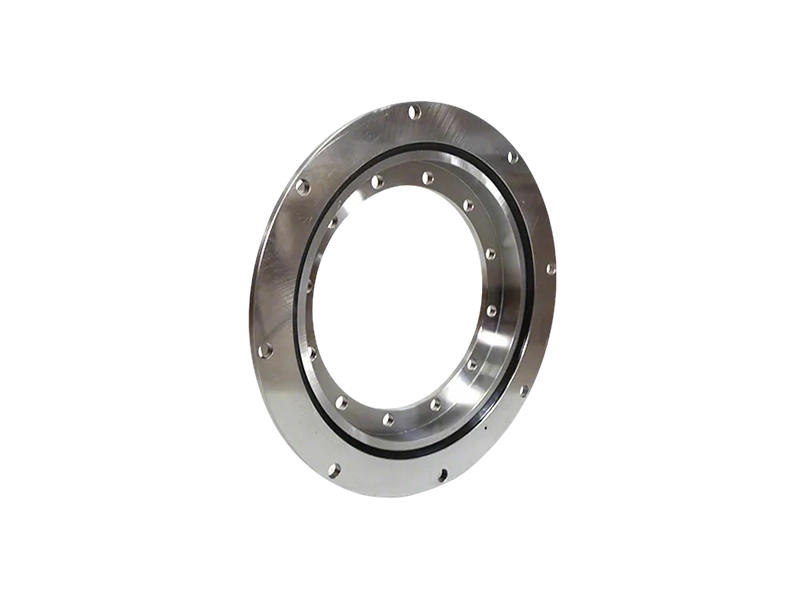

Our PLU20 series four-point contact ball slewing bearings are designed to meet the needs of light to medium load applications. While ensuring high precision, they have a compact structure and flexible rotation performance, making them an ideal choice for various construction machinery and automation equipment.
Four-point contact ball slewing bearing is a special bearing that can simultaneously withstand axial force, radial force and overturning moment. Its unique raceway design enables a single ball to achieve four points of contact on the inner and outer raceways, thus ensuring efficient and stable load-bearing performance.
| Four point Contact Ball Slewing Bearing (PLU 20 Series） | |||||||
| Light series Gearless type | |||||||
| Basic model | Weight | Mounting dimensions | |||||
| Kg | Da | di | La | na | Li | ni | |
| PLU20.414 | 24 | 518 | 304 | 490 | 8 | 332 | 12 |
| PLU20.544 | 31 | 648 | 434 | 620 | 10 | 462 | 14 |
| PLU20.644 | 37 | 748 | 534 | 720 | 12 | 562 | 16 |
| PLU20.744 | 43 | 848 | 634 | 820 | 12 | 662 | 16 |
| PLU20.844 | 48 | 948 | 734 | 920 | 14 | 762 | 18 |
| PLU20.944 | 54 | 1048 | 834 | 1020 | 16 | 862 | 20 |
| PLU20.1094 | 63 | 1198 | 984 | 1170 | 16 | 1012 | 20 |
Basic model
Corresponding type
INA
SKF
KAYDON
IMO
Mijnsbergen
Rothe Erde
Rollix
PLU20.414
VLU200414
RKS.23 0411
RK6-16P1Z
90-20 0411
SD.505.20.00
230.20.0400
23-0411-01
PLU20.544
VLU200544
RKS.23 0541
RK6-22P1Z
90-20 0541
SD.650.20.00
230.20.0500
23-0541-01
PLU20.644
VLU200644
RKS.23 0641
RK6-25P1Z
90-20 0641
SD.750.20.00
230.20.0600
23-0641-01
PLU20.744
VLU200744
RKS.23 0741
RK6-29P1Z
90-20 0741
SD.850.20.00
230.20.0700
23-0740-01
PLU20.844
VLU200844
RKS.23 0841
RK6-33P1Z
90-20 0841
SD.950.20.00
230.20.0800
23-0841-01
PLU20.944
VLU200944
RKS.23 0941
RK6-37P1Z
90-20 0941
SD.1050.20.00
230.20.00900
23-0941-01
PLU20.1094
VLU201094
RKS.23 1091
RK6-43P1Z
90-20 1091
SD.1200.20.00
230.20.1000
23-1091-01
1. High Load Capacity and High Precision
The PLU20 series utilizes an optimized raceway curve and high-quality steel balls, resulting in excellent load capacity under light and medium loads. Whether withstanding vertical forces, horizontal forces, or overturning moments, the PLU20 series operates stably and reliably, providing strong support for your equipment. Furthermore, our slewing bearings are precision-machined to ensure low friction and high rotational accuracy, ensuring smooth operation even after extended periods of operation.
2. Compact Design for Space Savings
Compared to traditional bearings, the PLU20 series is more compact and thinner, significantly reducing installation space and overall equipment weight. For space-constrained applications such as small cranes, automated robots, and medical equipment, choosing our lightweight slewing bearings offers greater design flexibility and cost-effectiveness.
3. Easy Installation and Low Maintenance
PLU20 Installation, Slewing Bearing Maintenance, Four-Point Contact Ball Bearings
The PLU20 series features a standardized design, making installation quick and easy. We provide detailed installation guides and technical support to ensure your equipment is operational quickly. In addition, this slewing bearing features a built-in seal that effectively prevents dust and moisture ingress, extending its service life and significantly reducing future maintenance costs.
Small lifting equipment: The PLU20 series' lightweight design and high load-bearing capacity make it an ideal choice for small mobile cranes and crane booms.
Automation equipment: In industrial robots and automated assembly lines, the PLU20 series provides smooth and reliable rotation, ensuring production efficiency and precision.
Medical equipment: The PLU20 series also excels in equipment such as CT scanners and medical beds, which require high precision and low noise.
Construction machinery: The PLU20 series provides a stable and reliable rotation platform for equipment such as small excavators and log grabbers.
If you have special design requirements, our team of engineers can provide professional customization services. Whether it's non-standard dimensions, special materials, or corrosion-resistant treatments, we can tailor a solution to suit your needs.
Want to learn more about the PLU20 series four-point contact ball slewing bearing? Or would you like a quote?
Contact our sales team now for free technical consultation and product quotes!
