A Comprehensive Analysis of the Rotational Accuracy of Crossed Roller Bearings: Key Influencing Factors and Efficient Solutions

Crossed roller bearings are renowned for their compact structure, high load-bearing capacity, and high rotational accuracy, and are widely used in industrial robots, machine tool spindles, precision instruments, and automated equipment. However, in practical use, rotational accuracy can be affected by various factors, leading to decreased equipment performance, reduced production efficiency, and even increased maintenance costs. This article will analyze the key factors affecting rotational accuracy in depth and provide practical solutions to help companies achieve efficient and stable equipment operation.

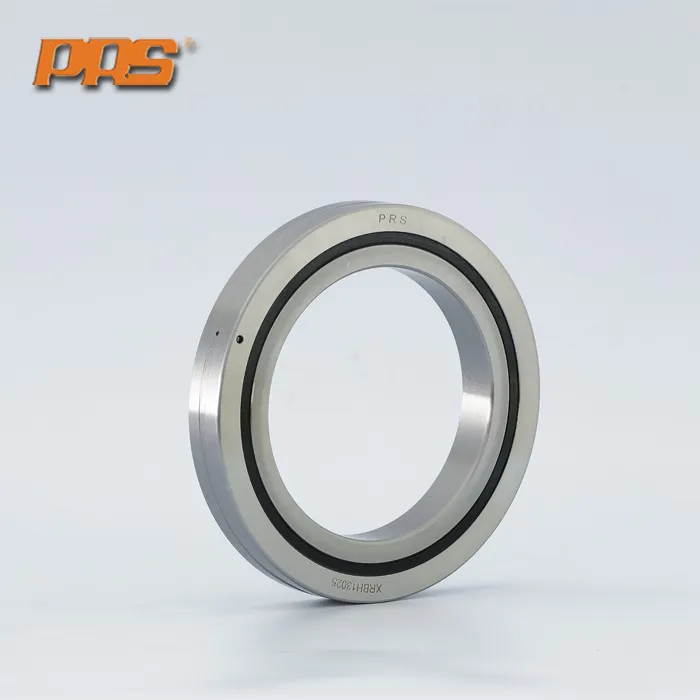

A Comprehensive Analysis of the Rotational Accuracy of Crossed Roller Bearings

I. Core Factors Affecting the Rotational Accuracy of Crossed Roller Bearings

1. Design Factors

Bearing design directly determines its rotational stability and accuracy:

Roller Arrangement: Any slight deviation will accumulate into overall motion error.

Inner and Outer Ring Clearance Design: Too tight or too loose will lead to uneven friction and increased vibration.

Material Selection: High-hardness, highly homogeneous bearing steel can effectively reduce deformation.

2. Manufacturing Factors

Precision manufacturing is a crucial guarantee of rotational accuracy:

Machining Accuracy: Machining errors in the inner ring, outer ring, and rollers directly affect rotational accuracy.

Heat Treatment Process: Uneven heat treatment will generate internal stress, causing deformation.

Surface Roughness: Excessive surface roughness increases friction and vibration, reducing accuracy.

3. Installation Factors

Even high-quality bearings will have their performance affected if improperly installed:

Installation Alignment: Eccentric installation will lead to radial runout and uneven friction.

Tightening Torque: Excessive or insufficient bolt torque can cause inner ring deformation.

Auxiliary Component Fit: Poor fit between the shaft, bearing race, and seals can lead to uneven preload.

4. Usage Factors

Operating environment and maintenance methods directly affect accuracy and stability:

Working load and speed: Overloading or high-speed operation can cause accumulation of minute deformations.

Lubrication condition: Insufficient lubrication or contaminated lubricating oil increases friction and causes vibration.

Environmental conditions: Temperature fluctuations, dust, and corrosive environments can affect bearing performance.

II. Efficient Solutions to Improve Rotational Accuracy

1. Design Optimization

Use finite element analysis to simulate roller arrangement and clearance design to reduce error risks.

Select high-strength, highly homogeneous materials to improve resistance to deformation.

Design dedicated sealing and lubrication solutions for different application environments.

2. Manufacturing Improvement

Improve machining accuracy and strictly control roller and inner/outer ring dimensional tolerances.

Optimize heat treatment processes to reduce internal stress.

Refine surface treatment to reduce friction and wear.

3. Installation Improvement

Use specialized tools to ensure bearing concentricity and preload meet standards.

Optimize the design of mating components to ensure precise matching between auxiliary components and bearings.

Provide detailed installation guidelines and training to avoid human error.

4. Optimization of Use

Regularly check bearing preload and lubrication status, and replenish or replace lubricating oil as needed.

Control equipment load and operating speed to prevent overloading.

Add protective measures in high-temperature, dusty, or corrosive environments to ensure long-term stable operation.

Summary: Four Key Aspects to Ensure Rotational Accuracy

The rotational accuracy of crossed roller bearings directly affects equipment stability and production efficiency. By taking scientific and effective optimization measures in the four aspects of design, manufacturing, installation, and use, not only can rotational accuracy be improved, but bearing life can also be extended and maintenance costs reduced. When selecting and applying crossed roller bearings, enterprises should comprehensively consider various factors to achieve efficient and stable operation of precision equipment.
