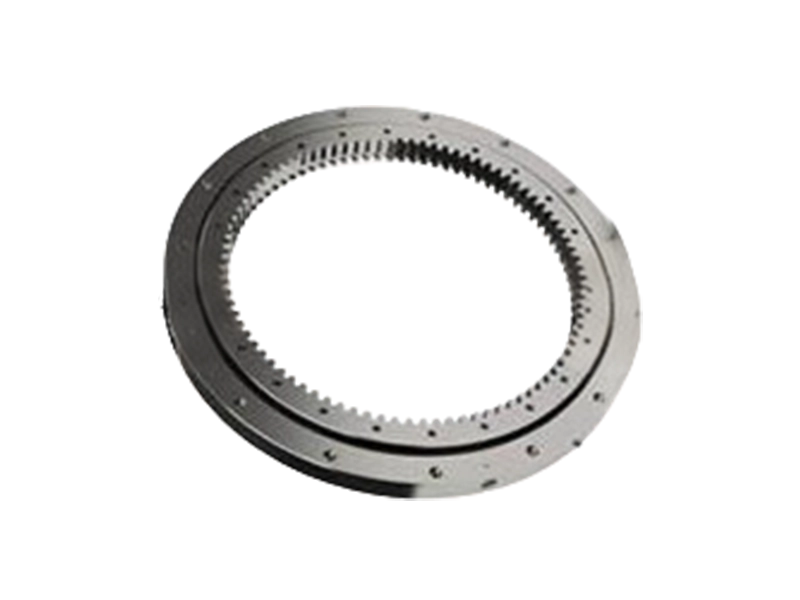

PSI25 series four-point contact ball slewing bearings stand out in high-precision, lightweight, and compact applications with their unique design and excellent performance.
In today's industrial landscape, where equipment performance requirements are increasingly high, choosing a slewing bearing with superior performance, stability, and reliability is crucial. The PSI25 Series four-point contact ball slewing bearing was designed for this purpose. Its unique design and superior performance make it a standout in high-precision, lightweight, and compact applications.
| PSI25 Series Four point Contact Ball Slewing Bearing | ||||||||||||||
| Light series Internal gear type | ||||||||||||||
| Weight | Mounting dimensions | Gear parameter | Corresponding type | |||||||||||
| Basic model | Kg | Da | di | La | na | Li | ni | do | m | z | INA | IMO | Mijnsbergen | Rothe Erde |
| PSI25.455 | 64 | 555 | 304 | 515 | 18 | 394 | 18 | 320 | 8 | 40 | 12-25 0455 | |||
| PSI25.555 | 76 | 655 | 416 | 615 | 20 | 494 | 20 | 432 | 8 | 54 | 12-25 0555 | |||
| PSI25.655 | 102 | 755 | 512 | 715 | 24 | 594 | 24 | 528 | 8 | 66 | 12-25 0655 | |||
| PSI25.755 | 119 | 855 | 610 | 815 | 24 | 694 | 24 | 630 | 10 | 63 | VSI250755 | 12-25 0755 | I.855.25.00.B | |
| PSI25.855 | 137 | 955 | 710 | 915 | 28 | 794 | 28 | 730 | 10 | 73 | VSI250855 | 12-25 0855 | I.955.25.00.B | 062.25.0855 |
| PSI25.955 | 149 | 1055 | 810 | 1015 | 30 | 894 | 30 | 830 | 10 | 83 | VSI250955 | 12-25 0955 | I.1055.25.00.B | 062.25.0955 |
| PSI25.1055 | 165 | 1155 | 910 | 1115 | 30 | 994 | 30 | 930 | 10 | 93 | VSI251055 | 12-25 1055 | I.1155.25.00.B | 062.25.1055 |
| PSI25.1155 | 183 | 1255 | 1010 | 1215 | 36 | 1094 | 36 | 1030 | 10 | 103 | 12-25 1155 | 062.25.1155 | ||
| PSI25.1255 | 198 | 1355 | 1110 | 1315 | 42 | 1194 | 42 | 1130 | 10 | 113 | 12-25 1255 | 062.25.1255 | ||
| PSI25.1355 | 215 | 1455 | 1210 | 1415 | 42 | 1294 | 42 | 1230 | 10 | 123 | 12-25 1355 | 062.25.1355 | ||
| PSI25.1455 | 229 | 1555 | 1310 | 1515 | 48 | 1394 | 48 | 1330 | 10 | 133 | 12-25 1455 | 062.25.1455 | ||
1. High Precision and High Rigidity: The Cornerstone of Stable Operation
The PSI25 Series utilizes a precision four-point contact ball design capable of simultaneously withstanding axial, radial, and overturning moment loads. Its unique internal structure ensures high rigidity and precision under diverse operating conditions, effectively reducing vibration and deflection during operation and providing stable and reliable support for your equipment. This is crucial for robotics, automation equipment, and medical devices, which require extremely high precision.
2. Lightweight and Thin-Wall Design: Optimum Space Utilization
In this article, we emphasize its lightweight and thin-wall properties. The PSI25 Series achieves extreme lightweighting through optimized structure and materials, significantly reducing the overall weight of the equipment. Furthermore, its thin-wall design minimizes both radial and axial cross-sections of the support, significantly facilitating efficient use of internal space. This perfectly meets user needs for compact equipment and lightweight design.
3. Excellent Load-Carrying Capacity and Durability
Despite its compact design, the PSI25 Series offers uncompromising load-carrying capacity. Its four-point contact ball structure effectively distributes stress, extending its service life. Using high-quality bearing steel and advanced processing techniques, we ensure that each bearing assembly offers exceptional durability and reliability, reducing equipment maintenance costs.
4. Diversified Applications: A Wide Range of Choices from Industrial to Medical
The PSI25 Series is more than just a product; it's an ideal solution for a wide range of applications. Its high precision and lightweight design make it widely applicable in:
Industrial Automation and Robotics: Robotic joints, sorting equipment, and automated production lines
Medical Equipment: CT scanners, ultrasound diagnostic equipment, and operating tables
Semiconductor Equipment: Wafer handling and testing equipment
Lightweight Construction Machinery and Wind Turbines
Want to learn more about the detailed specifications and customization services of the PSI25 Series four-point contact ball slewing bearing? Contact our professional team now and we will provide you with the most professional solutions!
