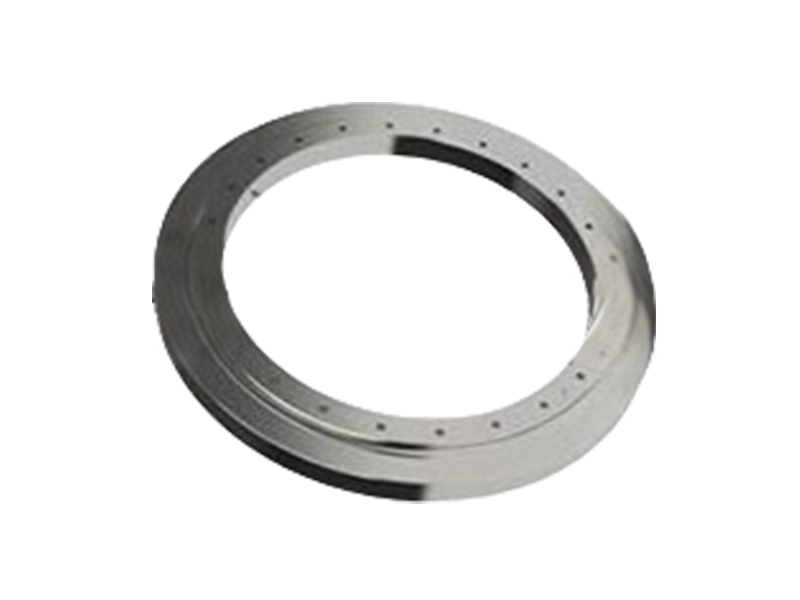

The PSU20 series four-point contact ball swivel bearing, with its unique structural design, supports various application scenarios requiring high precision, compactness and reliability.
The PSU20 Series four-point contact ball swivel bearing is an innovative multi-directional support solution that combines a "four-point contact ball bearing structure" with "support + rotation" functionality. It is designed specifically for high-precision, multi-directional load applications. Whether in robotic automation, logistics sorting, or precision equipment handling, it provides smooth, efficient multi-directional load bearing and rotational support.
| PSU20 Series Four Point Contact Ball Slewing Bearing | |||||||
| Light series Gearless type | |||||||
| Basic model | Weight | Mounting dimensions | |||||
| Kg | Da | di | La | na | Li | ni | |
| PSU20.414 | 29 | 486 | 342 | 460 | 24 | 368 | 24 |
| PSU20.544 | 37 | 616 | 472 | 590 | 32 | 498 | 32 |
| PSU20.644 | 44 | 716 | 572 | 690 | 36 | 598 | 36 |
| PSU20.744 | 52 | 816 | 672 | 790 | 40 | 698 | 40 |
| PSU20.844 | 69 | 916 | 772 | 890 | 40 | 798 | 40 |
| PSU20.944 | 67 | 1016 | 872 | 990 | 44 | 898 | 44 |
| PSU20.1094 | 77 | 1166 | 1022 | 1140 | 48 | 1048 | 48 |
Basic model
Corresponding type
INA
SKF
IMO
Mijnsbergen
Rothe Erde
Rollix
PSU20.414
VSU200414
RKS.060.20.0414
10-20 0411
SD.486.20.00.B
060.20.0414
33-0411-01
PSU20.544
VSU200544
RKS.060.20.0544
10-20 0541
SD.616.20.00.B
060.20.0544
33-0541-01
PSU20.644
VSU200644
RKS.060.20.0644
10-20 0641
SD.716.20.00.B
060.20.0644
33-0641-01
PSU20.744
VSU200744
RKS.060.20.0744
10-20 0741
SD.816.20.00.B
060.20.0744
33-0741-01
PSU20.844
VSU200844
RKS.060.20.0844
10-20 0841
SD.916.20.00.B
060.20.0844
33-0841-01
PSU20.944
VSU200944
RKS.060.20.0944
10-20 0941
SD.1016.20.00.B
060.20.0944
33-0941-01
PSU20.1094
VSU201094
RKS.060.20.1094
10-20 1091
SD.1166.20.00.B
060.20.1094
33-1091-01
Four-Point Contact Ball Bearing Structure: This design allows the main ball to contact multiple support balls for load bearing, improving load-bearing capacity and stability, making it particularly suitable for high-impact and heavy-load environments. The four-point contact ball bearing mechanism also enables a compact design within limited space, making it suitable for installations with limited space.
"Ball Rotation" Support Function: The PSU20 Series' unique integrated ball rotation support structure allows the load to slide on the main ball while also enabling micro-rotation, enabling more flexible and precise movement and positioning of objects.
1. Strong Load-Bearing Capacity and Stable Four-Point Contact Bearing - The four-point contact ball structure distributes the load, extending service life and operational stability.
2. Multi-Directional Low-Friction Transmission - The "ball rotation" design ensures low friction and low thrust requirements during multi-directional transmission, making it suitable for high-speed/high-frequency operation.
3. Compact Support Assembly - Compared to traditional double-row structures, the four-point contact design occupies less axial space, making it more suitable for installation in confined spaces.
4. Reliable and durable, suitable for harsh environments - Available materials include stainless steel, ceramic, and high-temperature-resistant alloys to withstand harsh operating conditions such as high temperatures and dust.
5. Low maintenance and long life - Many utilize a pre-lubricated design and are equipped with protective features such as replaceable seals and drain holes to extend service life and ensure continuous operation.
PSU20 Series four-point contact ball swivel bearings are widely used in the following high-tech and precision equipment:
Industrial robotics and automation equipment: Robotic joints, rotary stages, automated workstations, etc. require precise and reliable rotational motion.
Medical equipment: CT machines, medical scanners, surgical robots, etc. demand high precision and trouble-free operation.
Precision measuring instruments: Rotating stages, optical instruments, etc. require extremely high positioning accuracy and stability.
Radar and communications equipment: Satellite antennas, radar rotating mechanisms, etc. have strict requirements for load capacity and anti-tilt resistance.
Choosing the PSU20 Series four-point contact ball swivel bearing means you've chosen the perfect combination of high precision, compactness, and versatility. We are committed to providing high-quality PSU20 series swivel bearings to ensure optimal performance in your equipment. If you are looking for a reliable four-point contact ball bearing or swivel bearing solution for your project, please feel free to contact us. Our professional team will provide you with the most suitable PSU20 Series model and technical support based on your specific needs.
