XRC series crossed roller bearings, with their unique structural design, effectively solve the limitations of traditional bearings in terms of space, precision and load capacity. They are widely used in CNC machine tools, industrial robots, medical equipment, high-precision turntables and other fields.

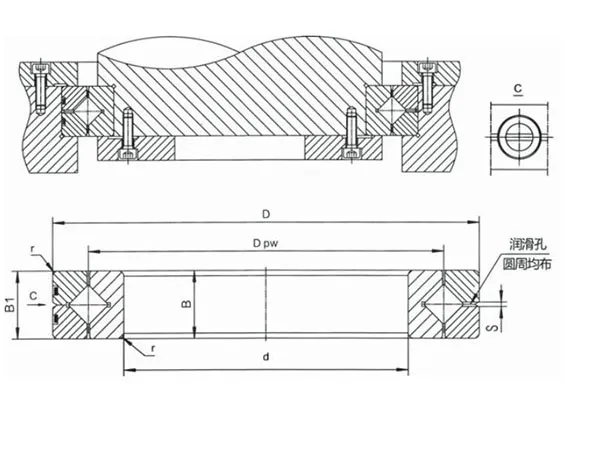

| XRC series crossed roller bearings | ||||||||||
| Nominal type | External dimension | Basic rated load | Weight | Corresponding type | ||||||
| （kN） | ||||||||||
| Internal diameter | Outside diameter | Width | Pitch Circle diameter of roller | Shoulder dimension | Radial direction | |||||
| d | D | B | Dpw | ds | Dh | C | Co | Kg | INA | |
| XRC 7010 | 70 | 90 | 10 | 80 | 79.5 | 80.5 | 18 | 60 | 12 | 30 |
| XRC 9013 | 90 | 115 | 13 | 102 | 101.5 | 102.5 | 26 | 96 | 17 | 47 |
| XRC 10013 | 100 | 125 | 13 | 112 | 111.5 | 112.5 | 28 | 106 | 18 | 52 |
| XRC 12016 | 120 | 150 | 16 | 135 | 134.4 | 135.6 | 41 | 153 | 26 | 75 |
| XRC 14018 | 140 | 175 | 18 | 157 | 156.3 | 157.7 | 64 | 237 | 41 | 116 |
| XRC 16020 | 160 | 200 | 20 | 180 | 179.2 | 180.8 | 69 | 272 | 44 | 133 |
| XRC 18022 | 180 | 225 | 22 | 202 | 201.2 | 202.8 | 98 | 381 | 63 | 187 |
| XRC 20024 | 200 | 250 | 24 | 225 | 224.2 | 225.8 | 106 | 425 | 68 | 208 |
| XRC 24028 | 240 | 300 | 28 | 270 | 269.2 | 270.8 | 149 | 612 | 95 | 300 |
| XRC 30038 | 300 | 380 | 38 | 340 | 339.2 | 340.8 | 245 | 1027 | 156 | 504 |
| XRC 34038 | 340 | 420 | 38 | 380 | 379.2 | 380.8 | 265 | 1148 | 167 | 363 |
| XRC 40046 | 400 | 500 | 46 | 450 | 449 | 451 | 385 | 1699 | 244 | 833 |
| XRC 50056 | 500 | 620 | 56 | 560 | 558.8 | 561.2 | 560 | 2538 | 355 | 1244 |
Ultra-High Rigidity and Load-Carrying Capacity: The XRC series bearings utilize a crossed roller arrangement, with cylindrical rollers alternately arranged at 90° angles to each other. This design allows a single bearing to simultaneously withstand multiple loads, including radial, axial, and tilting moments, while offering several times greater rigidity than conventional bearings. This is crucial for applications requiring extremely high stability and repeatable positioning accuracy.
Ultimate Rotational Accuracy: The linear contact between the rollers and raceways effectively reduces friction, ensuring ultra-high rotational accuracy and smooth operation. We offer a variety of precision grades, including P4 and P2, to meet your most demanding precision requirements.
Compact and Lightweight, Space-Saving: The XRC series bearings feature an integrated inner and outer ring design, resulting in a highly compact design. Compared to conventional bearings, this design significantly reduces installation space and weight, making it ideal for applications with strict size requirements.
Easy Installation and Low Maintenance: Thanks to its design, the XRC series bearings significantly simplify installation. The preload is set at the factory, requiring only simple installation and fixing, significantly reducing on-site commissioning and maintenance costs.
Component Analysis: Unveiling the Ingenious Design of the XRC Series Crossed Roller Bearings
Raceway: Finely ground and heat-treated, it provides a hard and smooth surface, ensuring smooth roller rolling.
Cylindrical Rollers: High-quality cylindrical rollers are the core of their high load-bearing capacity. Strict size and shape control ensures uniform and stable contact surfaces.
Spacer: Separates each roller, preventing friction between them and ensuring low friction torque and stable rotational performance.
Integrated Inner/Outer Rings: This design is key to achieving high rigidity and a compact structure.
The superior performance of XRC series crossed roller bearings makes them a top choice in the following industries:
CNC machine tools and machining centers: Used in high-precision rotary tables, spindles, and tool changers, ensuring machining accuracy and efficiency.
Industrial robots: As spherical bearings, they provide strong support for the robots' precise movements and high load capacity.
Medical equipment: Used in surgical robots, CT, and MRI equipment, they provide stable, silent, and high-precision rotation.
Semiconductor manufacturing equipment: Used in applications requiring high cleanliness and precision, such as wafer handling and inspection.
Precision testing equipment: Used in measuring and calibration equipment, they ensure reliable measurement results.
To help you make the best selection, please refer to our detailed XRC series crossed roller bearing technical specifications. We offer a variety of models, sizes, and accuracy grades to match your specific application requirements. When selecting, please consider the following key parameters:
Inner Diameter: The size of the bearing mounting hole.
Outer Diameter: The outer dimensions of the bearing.
Height: The overall height of the bearing.
Accuracy Class: Select a class based on your accuracy requirements, such as P4 or P2.
Load Ratings: These include basic static and dynamic load ratings to ensure the bearing can withstand your operating loads.
If you're unsure about your choice, our professional technical team will provide one-on-one selection assistance to ensure you receive the most suitable solution.
