XRE Series

XRE Series Crossed Roller Bearings Introduction

When your equipment requires high precision, high rigidity, and stable rotation, the XRE series crossed roller bearings are your best choice. As high-precision rotary bearings designed for demanding operating conditions, the XRE series perfectly combines accuracy, load capacity, and compact design, providing reliable power support for critical applications such as robotic joints, high-precision CNC machine tools, medical equipment, and precision measuring instruments.

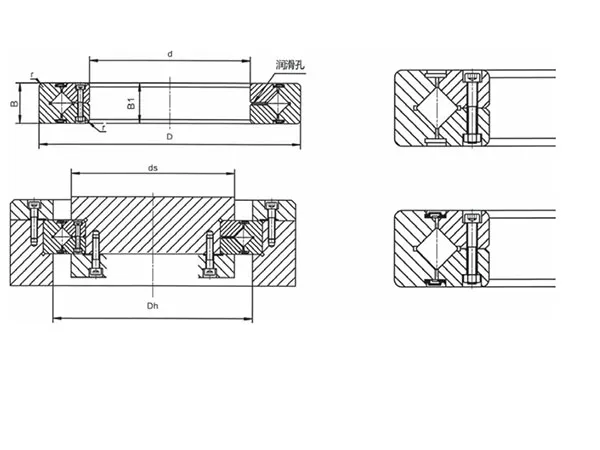

Parameter

Core Technologies and Unique Advantages of XRE Crossed Roller Bearings

The XRE series bearings utilize a unique crossed roller arrangement, with cylindrical rollers arranged in a 90-degree V-shape between the inner and outer rings, separated by spacers. This ingenious design offers the following unparalleled advantages:

Ultra-High Rigidity and Load Capacity: The unique line-of-contact design between the rollers and raceways enables a single bearing to simultaneously withstand loads in multiple directions, including radial, axial, and overturning moments. Its rigidity is several times greater than that of conventional bearings, effectively suppressing vibration-induced errors and ensuring stable and accurate equipment operation.

Ultimate Rotational Accuracy: Strictly controlled roller diameter and raceway tolerances, combined with precision manufacturing processes, ensure XRE bearings offer exceptionally high rotational accuracy, making them particularly suitable for precision applications requiring submicron positioning.

Compact Design, Space Savings: Compared to traditional combinations of two thrust bearings and one radial bearing, the XRE bearing's single-piece design significantly simplifies the structure, saving valuable installation space and simplifying the installation process, reducing the overall size and weight of the equipment.

Simplify Installation and Reduce Costs: The integrated design eliminates the need for complex preload adjustments and allows for simple bolt-on installation, significantly reducing assembly time and labor costs while also preventing precision loss due to improper installation.

XRE Crossed Roller Bearings: Applications at a Glance

XRE series crossed roller bearings, with their superior performance, have been widely used in a variety of cutting-edge industries:

Industrial Robots and Robotic Arm Joints: As the core component of robotic joint bearings, XRE bearings provide a solid foundation for precise motion and high repeatability.

CNC Machine Tools and Machining Centers: In critical areas such as machine tool spindles, indexing tables, and tool turrets, XRE bearings ensure high precision and rigidity at high speeds, improving machining quality.

Medical Equipment: The smooth rotation and high reliability of XRE bearings are crucial in equipment such as CT scanners, PET scanners, and medical robotic arms.

Aerospace and Military: XRE bearings ensure stable operation in precision equipment such as radar antennas, optical aiming systems, and aircraft gyroscopes.

Other Precision Equipment: Applications in printing machinery, measuring instruments, semiconductor manufacturing equipment, and other fields requiring extremely high precision.

How to Choose the Right XRE Crossed Roller Bearing?

We offer XRE series crossed roller bearings in a variety of sizes and precision grades to meet your diverse application needs. When selecting, please consider the following key parameters:

Inner Diameter and Outer Diameter: The bearing dimensions must match your equipment design.

Precision Grade: Select based on your application's precision requirements (P5, P4, P2, etc.).

Load Capacity: Select based on your equipment's radial, axial, and overturning moment loads.

Whether you're looking for a high-precision rotary bearing to upgrade your CNC machine tools or a high-performance robotic spherical bearing to enhance the reliability of your automated equipment, the XRE series crossed roller bearing is the ideal solution.
