How to Improve the Indexing Accuracy of CNC Rotary Tables Using Crossed Roller Bearings

In modern manufacturing, precision is the cornerstone of high-quality production. CNC rotary tables are integral to milling, drilling, and multi-axis machining operations, where even a tiny positioning error can affect the final part quality. Among the various factors influencing performance, indexing accuracy—the ability to rotate and stop exactly at predefined angles—is critical.

One of the most influential components in achieving this precision is the crossed roller bearing. By understanding and optimizing these bearings, manufacturers can significantly enhance rotary table accuracy and reliability.

How to Improve the Indexing Accuracy of CNC Rotary Tables Using Crossed Roller Bearings

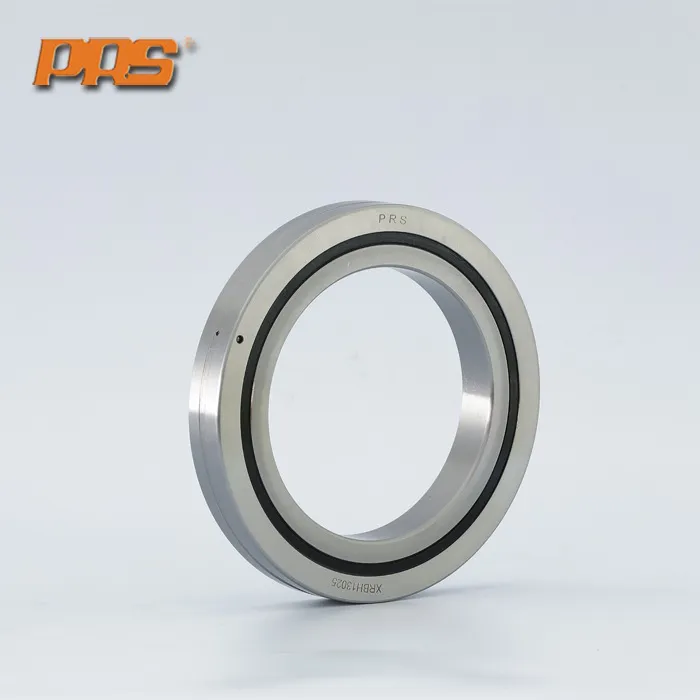

1. Understanding Crossed Roller Bearings

Crossed roller bearings are uniquely designed with cylindrical rollers arranged alternately at 90° angles. This configuration allows the bearing to:

Support combined loads: Radial, axial, and moment loads can be handled simultaneously.

Maintain high rigidity: Essential for precise rotation under heavy machining forces.Minimize backlash: Ensures smooth and accurate indexing.

Because of these advantages, crossed roller bearings are the go-to choice for high-precision CNC rotary tables, from automotive components to aerospace tooling.

Real-world insight: In mold-making applications, using a rotary table without crossed roller bearings can introduce angular errors exceeding 0.01°, while properly installed crossed roller bearings can reduce this to less than 0.001°.

2. Proper Installation is Critical

Even the highest-quality bearing cannot deliver precision if installed incorrectly. Key installation practices include:

Alignment: Ensure bearing rings are perfectly aligned with the rotary table axis. Misalignment can cause uneven load distribution, reducing both accuracy and bearing lifespan.

Torque Settings: Fasten bolts using manufacturer-recommended torque. Too tight creates internal stress; too loose introduces unwanted play.

Clean Environment: Dust, metal shavings, or oil residues can compromise smooth rotation. Always perform installation in a clean, controlled environment.

Tip: Use precision dial indicators or alignment fixtures during installation to guarantee concentricity within micrometer tolerances.

3. Optimize Bearing Preload

Preload is the controlled axial load applied to remove internal clearance. Correct preload ensures:

Minimal backlash: Enhances indexing precision.

Even load distribution: Prevents premature wear and ensures consistent rotation.

Caution: Over-preloading increases friction and accelerates wear, while under-preloading introduces vibration and angular errors. Use torque-controlled adjustments or precision shims to achieve the manufacturer-recommended preload.

Industry example: Aerospace component machining often requires preload adjustments within ±5 μm to achieve repeatable accuracy over thousands of rotations.

4. Lubrication and Maintenance

Even premium bearings require proper lubrication:

Choose suitable lubricants: High-precision, low-viscosity greases or oils are ideal. Avoid general-purpose greases containing particles.

Regular maintenance: Inspect lubrication periodically to prevent wear, corrosion, or overheating.

Temperature control: Excessive heat reduces rigidity and accuracy. Keep operating temperatures within recommended limits.

Pro tip: For high-speed applications, synthetic lubricants offer longer life and more consistent performance under varying loads and temperatures.

5. Minimize External Influences

External factors can affect even the best bearings:

Machine vibration: Ensure stable CNC foundations and vibration damping.

Load distribution: Clamp workpieces evenly; off-center loads can tilt the table slightly, reducing precision.

Environmental control: Temperature fluctuations or humidity can affect bearing materials. Controlled conditions are crucial in ultra-precision applications.

Insight: Even a 1°C temperature change can introduce measurable thermal expansion in steel rotary tables, slightly impacting indexing precision.

6. Advanced Techniques for Ultra-Precision

For industries where micrometer-level accuracy is required:

Laser or optical measurement: Regularly measure indexing error using high-resolution systems.

Compensation software: Modern CNC controllers can adjust for minor errors, improving overall machining precision.

Hybrid bearings: Some high-end rotary tables combine crossed roller bearings with air or magnetic support for near-zero backlash performance.

Applications: Aerospace, mold-making, and precision electronics benefit most from these advanced measures.

Conclusion

Achieving superior indexing accuracy in CNC rotary tables begins with understanding the role of crossed roller bearings. By focusing on proper installation, preload optimization, regular maintenance, and environmental control, manufacturers can maximize precision and extend equipment life.

Investing in quality bearings and meticulous maintenance not only improves machining accuracy but also reduces downtime, enhances efficiency, and ensures consistent product quality across high-precision applications.

Key Takeaways for Manufacturers:

Crossed roller bearings are central to rotary table precision.

Proper installation and alignment prevent common accuracy issues.

Preload optimization balances rigidity and longevity.

Regular lubrication and temperature control maintain performance.

Minimizing external influences complements the bearing’s precision.

Advanced measurement and hybrid systems elevate accuracy for critical applications.
