Preventing Ring Distortion in Thin Section Bearing Installation: Best Practices for Long-Term Reliability

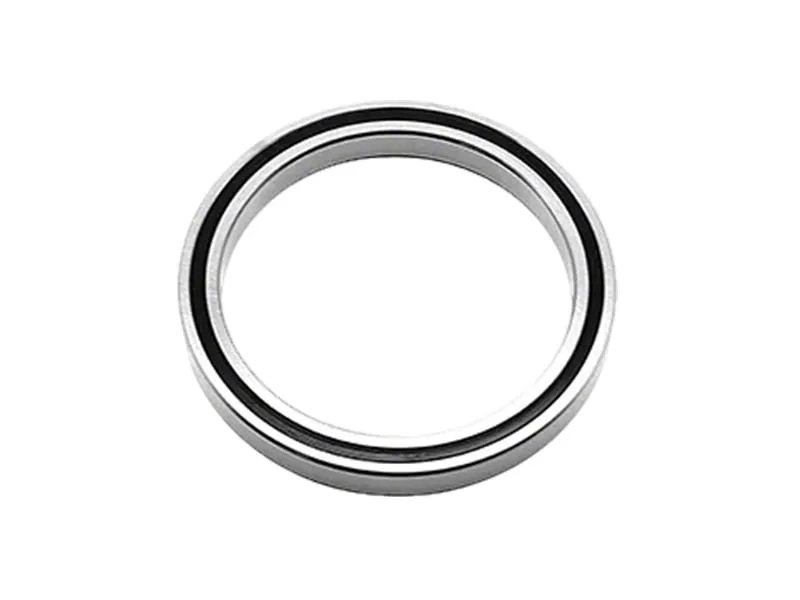

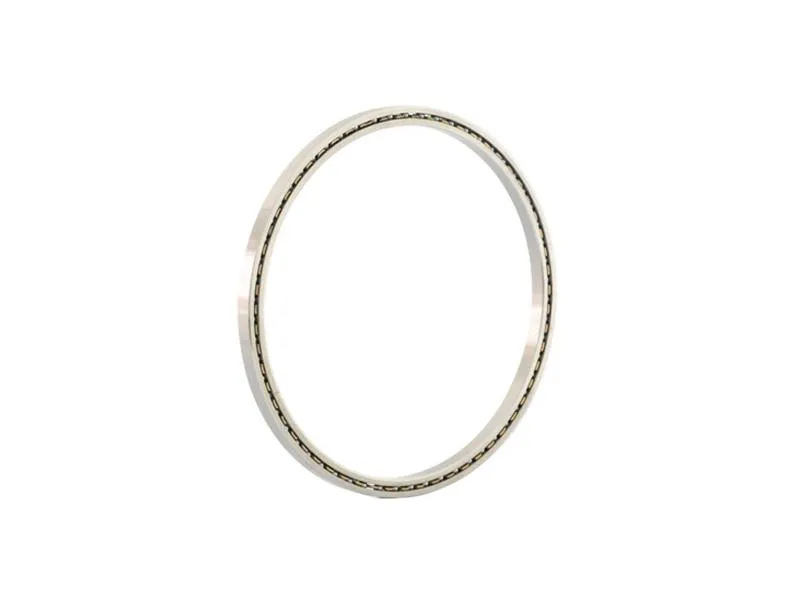

Thin section bearings have become increasingly critical in modern industrial applications due to their compact size, lightweight design, and ability to handle high-precision rotational loads. From robotics and aerospace components to medical devices and machine tools, these bearings provide engineers with exceptional flexibility where space and weight constraints are paramount. However, the very characteristics that make thin section bearings attractive—reduced cross-sectional height and precision tolerances—also make them more susceptible to installation errors, particularly ring distortion. Preventing ring distortion in thin section bearing installation is essential to ensure optimal performance, extended service life, and reduced maintenance costs.

Understanding Ring Distortion in Thin Section Bearings

Ring distortion occurs when excessive or uneven forces are applied to the inner or outer rings of a bearing during installation. In thin section bearings, the ring walls are much thinner than those in standard bearings, which means even minor deviations in mounting can lead to permanent deformation. Distorted rings compromise the bearing’s ability to rotate smoothly, introduce uneven stress distribution, and may cause premature failure of rolling elements or raceways. The consequences are often amplified in high-speed or precision applications, where even microscopic deformations can translate into significant operational inefficiencies.

Common causes of ring distortion include:

Misalignment during assembly – Improper alignment between the shaft and housing can introduce bending stresses on the bearing rings.

Excessive mounting force – Using hammers or presses without appropriate controls can deform thin rings.

Incorrect tool usage – Applying pressure on the wrong surfaces or using non-specialized tools increases the risk of ring damage.

Thermal expansion errors – Rapid heating or cooling without proper guidance can induce uneven expansion, leading to distortion.

Best Practices for Preventing Ring Distortion

Preventing ring distortion begins with careful planning and the use of proper installation techniques. Engineers and technicians should follow a systematic approach to reduce the risk of damage:

1. Select the Right Tools and Equipment

Specialized mounting tools such as bearing sleeves, spanner rings, and hydraulic presses are essential for thin section bearings. These tools are designed to apply uniform force to the bearing rings without concentrating pressure on specific points, which minimizes the risk of distortion. Additionally, torque-controlled wrenches and alignment jigs help ensure that the applied forces remain within manufacturer-recommended limits.

2. Maintain Cleanliness and Lubrication

Contaminants such as dust, metal shavings, or residual grease can interfere with smooth installation, forcing technicians to apply uneven pressure. Clean shafts, housings, and bearing surfaces thoroughly before installation. Using an appropriate lubricant during mounting also allows the bearing to slide into place more easily, reducing mechanical stress on the rings.

3. Apply Uniform and Controlled Force

When pressing a bearing onto a shaft or into a housing, it is critical to apply force only to the ring that is being fitted. For instance, when installing an outer ring into a housing, ensure that the inner ring is free to rotate or is supported appropriately. Uneven force or hammering directly on the rings can cause warping or cracking, especially in bearings with very thin walls.

4. Ensure Proper Alignment

Misalignment during installation is one of the leading causes of ring distortion. Verify shaft and housing tolerances and use alignment tools to center the bearing correctly. Even minor angular or radial misalignment can generate stress concentrations that deform the rings during initial operation.

5. Control Thermal Effects

Some thin section bearings are installed using thermal expansion methods, where the bearing or housing is heated or cooled to facilitate fitting. It is crucial to follow precise temperature guidelines. Uneven heating or rapid temperature changes can cause differential expansion, leading to permanent ring distortion. Use calibrated equipment and gradual temperature changes to avoid these risks.

6. Conduct Post-Installation Verification

After installation, inspect the bearing for any signs of ring distortion. Measure radial and axial runout using precision instruments to ensure that the bearing rings remain within acceptable tolerances. Additionally, a low-speed rotation test under controlled load can help detect irregularities before full operation begins.

Training and Standardization

One of the most effective long-term strategies for preventing ring distortion is investing in operator training and standardized procedures. Technicians must be educated about the unique vulnerabilities of thin section bearings, including how subtle installation errors can compromise performance. By implementing standardized installation protocols, companies can reduce the risk of human error and ensure that every bearing receives the care it requires.

The Role of Manufacturers in Ensuring Reliability

Bearing manufacturers also play a crucial role by providing detailed installation guidelines, high-quality mounting tools, and training support. Many manufacturers now offer installation kits specifically designed for thin section bearings, including adapters, sleeves, and temperature-controlled heating solutions. These resources not only facilitate proper installation but also enhance overall equipment reliability.

Conclusion

Thin section bearings are indispensable for modern precision machinery, but their reduced ring thickness makes them vulnerable to distortion during installation. Preventing ring distortion in thin section bearing installation requires a combination of correct tools, controlled force, proper alignment, thermal management, and operator training. By following these best practices, engineers can ensure that thin section bearings deliver optimal performance, longevity, and reliability. Investing the time and resources to prevent ring distortion ultimately reduces maintenance costs, prevents unscheduled downtime, and enhances the operational efficiency of critical equipment.

For companies looking to optimize their machinery with thin section bearings, understanding and implementing proper installation techniques is not optional—it is essential. Prioritizing careful handling and precision during installation protects the integrity of the bearing and the performance of the entire system.
